PRODUCT DESCRIPTION
Electrical Characteristics:

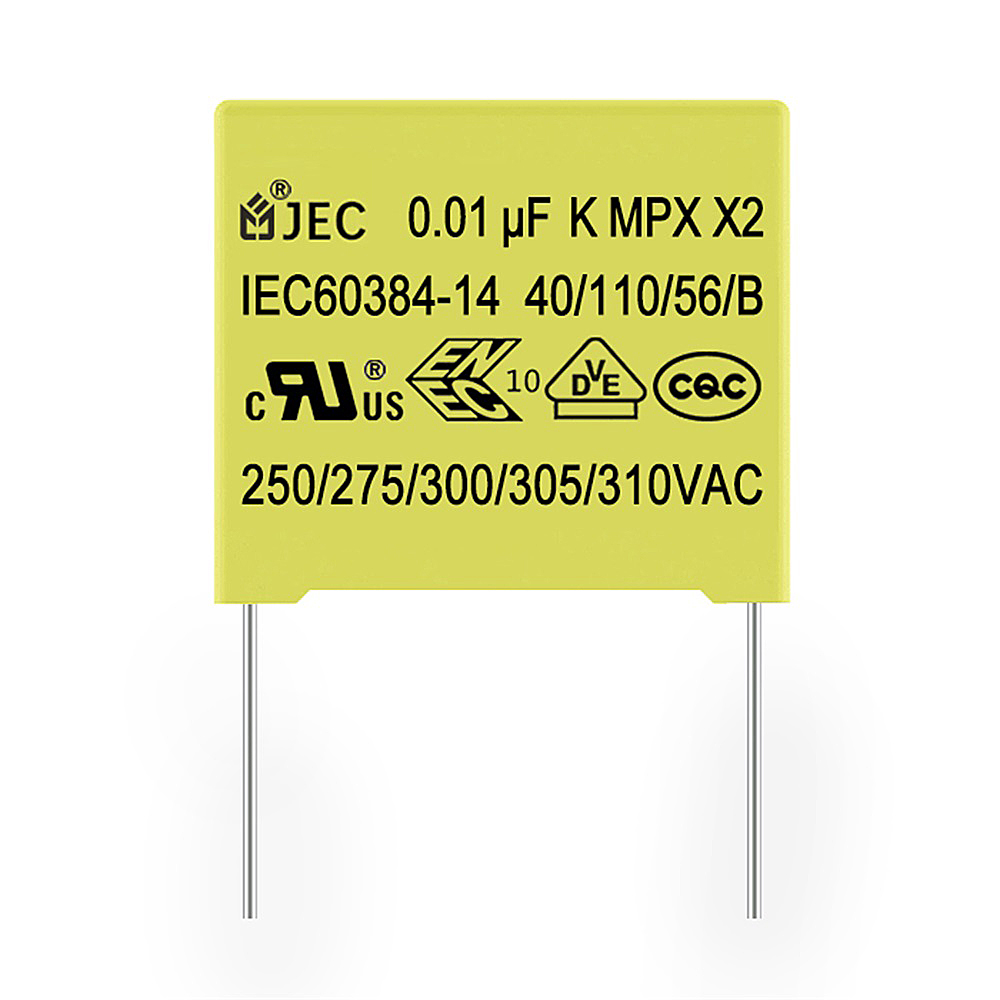

Product name | X2 Safety Capacitor Polypropylene Film Capacitor |
Type | MPX (MKP) |
Approval Standards | IEC 60384-14 |
Features | Non-inductive structure High moisture-resistance Self-healing property Flame retardant type (compliance with UL94V-0) Very small loss Excellent frequency and temperature characteristics High insulation resistance |
Rated Voltage | 250/275/300/305/310VAC |
Application | Widely used in the suppression of electromagnetic interference and power connection circuits, especially suitable for dangerous situations where the use of capacitors will not cause electric shock after failure. |
Capacitance Range(uF) | 0.001uF~2.2uF |
Operating Temperature (℃) | -40℃~105℃ |
Customization | Accept customized content and provide sample services |
Product Structure Chart:

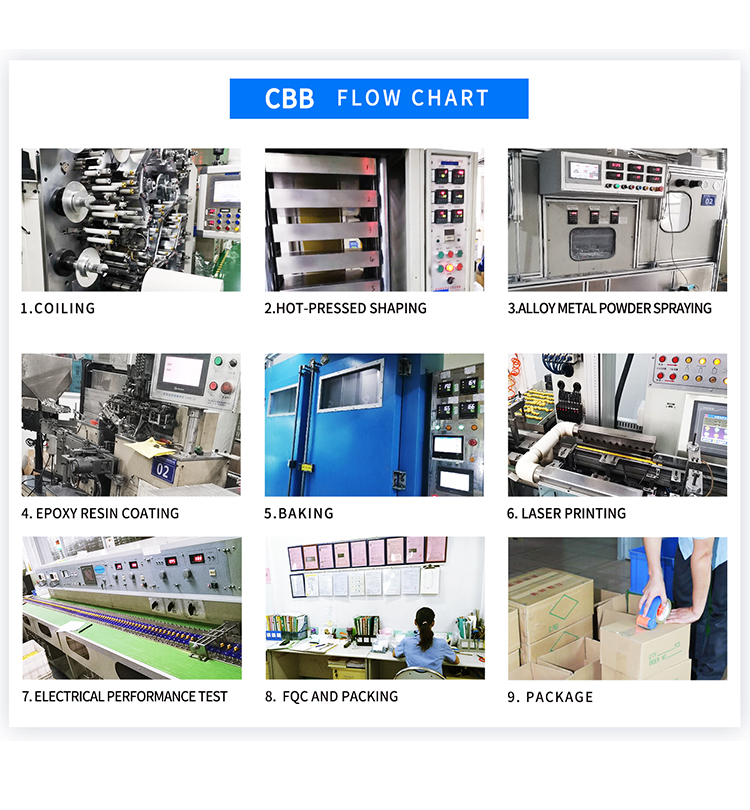

Production Process:
Application Area :
Certifications :
Dongguan Zhixu Electronic Co., Ltd. (also JYH HSU(JEC)) factories are ISO-9000 and ISO-14000 certified. JEC X2, Y1, Y2 capacitors and varistors have passed these certifications:
CQC (China)
VDE (Germany)
CUL (America/Canada)
KC (South Korea)
ENEC (EU)
CB (International Electrotechnical Commission)
All of our capacitors are in line with the EU ROHS directives and REACH regulations.
Customer Feedback :
*FAQ:
Q: What is the work temperature of safety Y capacitors?
A: -40℃ to +85℃ and -40℃~ to 125℃.
Q: How to differentiate between high voltage ceramic capacitor material Y5U and Y5V?
A: High voltage ceramic capacitor Y5U is generally used in high temperature products while Y5V is used in normal temperature products with a capacity above 1000PF.
Q: Does a CBB capacitor have polarity？
A: CBB is a kind of non-polar NTC capacitor made of non-polar polypropylene film.
Q: Do you offer samples?
A: Yes, we can offer free samples no more than 20 pieces for you, but the shipping fees should be borne by you.
