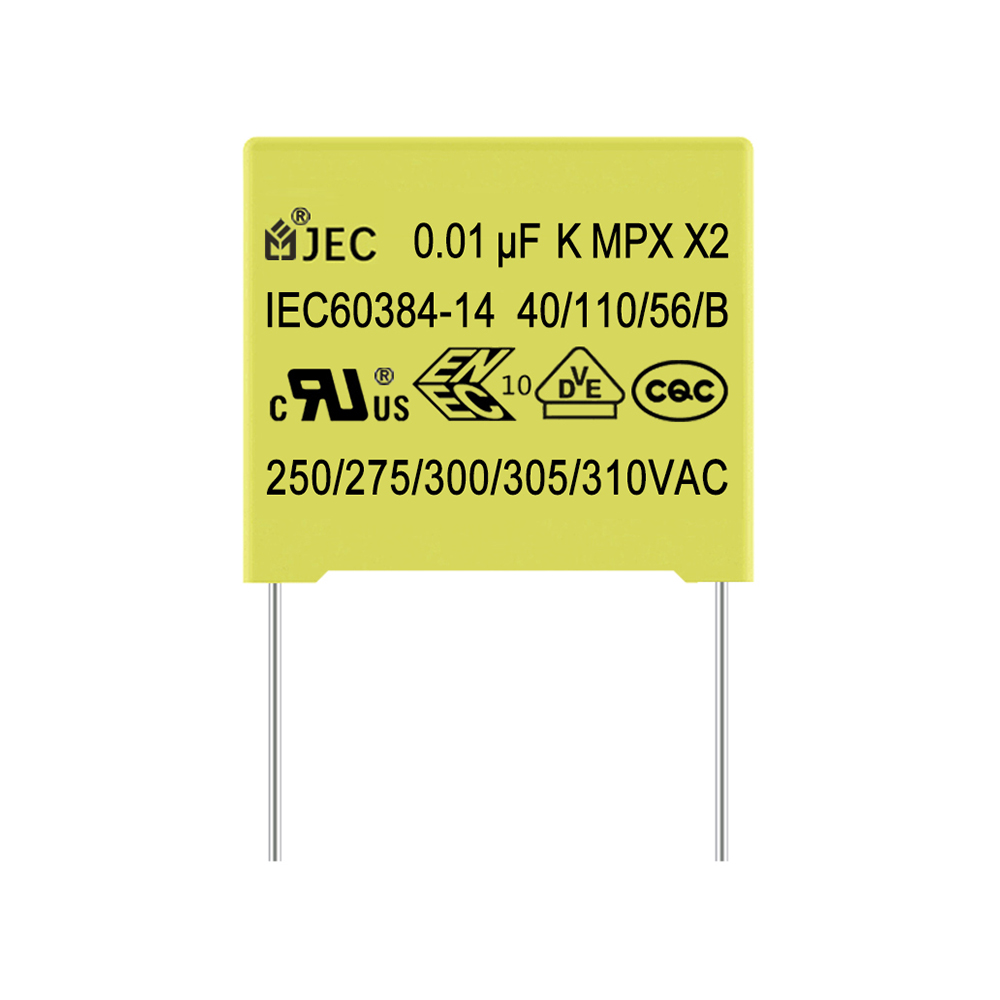

PRODUCT DESCRIPTION
Electrical Characteristics:
High reliability against active or passive flammability
Strong self-healing, high voltage strength
Good attenuation, low impedance, strong interference suppression
Temperatures up to +110°C
According to RoHS Directive 2011/65/EC
Halogen free capacitors available on request
Dielectric: Polypropylene film (MKP)
Electrode: Vacuum Precipitation
Plastic case (UL 94 V-0)
Epoxy Potting Compounds (UL 94 V-0)

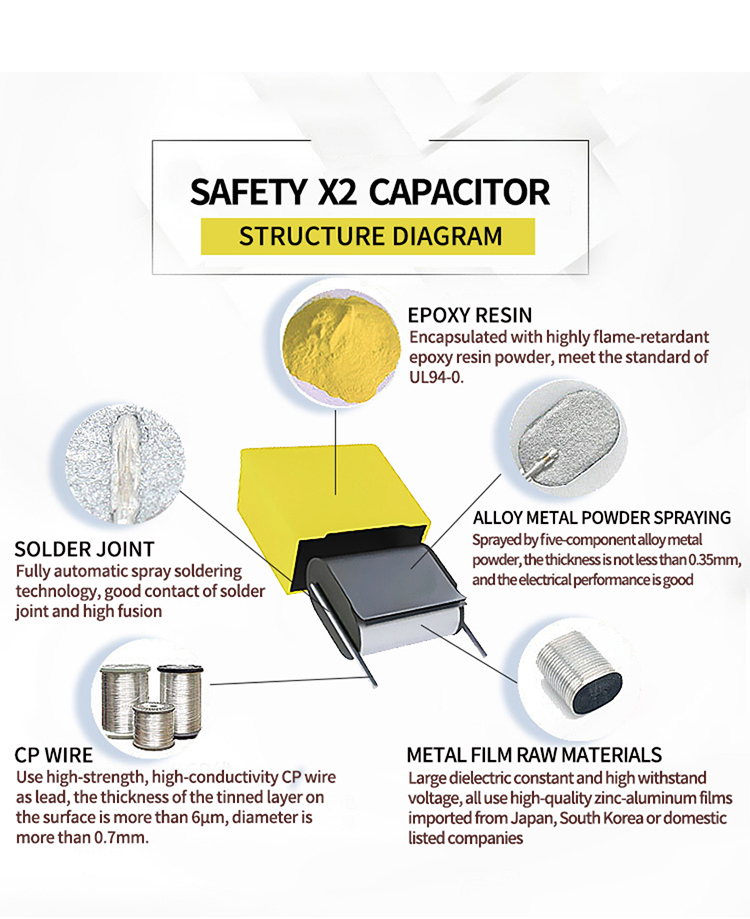

Product Structure Chart:
Product Packaging Drawing:
Application Area :
Recommended Application Areas
Meet Electromagnetic Compatibility Standards
Connected between power insulator and conductor
Type II installation according to IEC 60664, peak pulse ≤ 2.5kV
Certifications :
*FAQ:
What is the difference between an X capacitor and a Y capacitor?
1. The X capacitor suppresses differential mode interference, and the Y capacitor suppresses common mode interference.
2. Based on the limitation of leakage current, the capacitance of Y capacitor should not be too large. Generally, the X capacitor is uF level, and the Y capacitor is nF level.
3.X capacitors are often metallized polypropylene film capacitors (MPX) and capacitors use polyester film capacitors with relatively large ripple current resistance. These types of capacitors are larger in size, but the current that allows instant charging and discharging is also large, and their internal resistance is correspondingly small.
Y capacitors often use high-voltage ceramics.
What are the differences between X1 and X2 capacitor?
The X1 and X2 capacitors work the same way. The functions of these two capacitors are actually the same. They are used to suppress the electromagnetic interference of the power supply. They are generally installed between the live wire and the neutral wire of the power supply, and they play a role in differential mode filtering. Therefore, in terms of function, X1 and The X2 capacitor doesn't really make much difference.
The only difference between X1 and X2 capacitors is the withstand voltage value.
