Product features:
1. Small size and large surge current resistance. Excellent sensitivity to respond to transient surges, wide varistor voltage range, low limiting voltage, reliable protection effect, no continuous current.
2. Low limiting voltage (residual voltage), low leakage current, fast response speed (ns level), integration of electrical terminals and fixed terminals.
PRODUCT DESCRIPTION
Electrical Characteristics:
| Technical Data | |

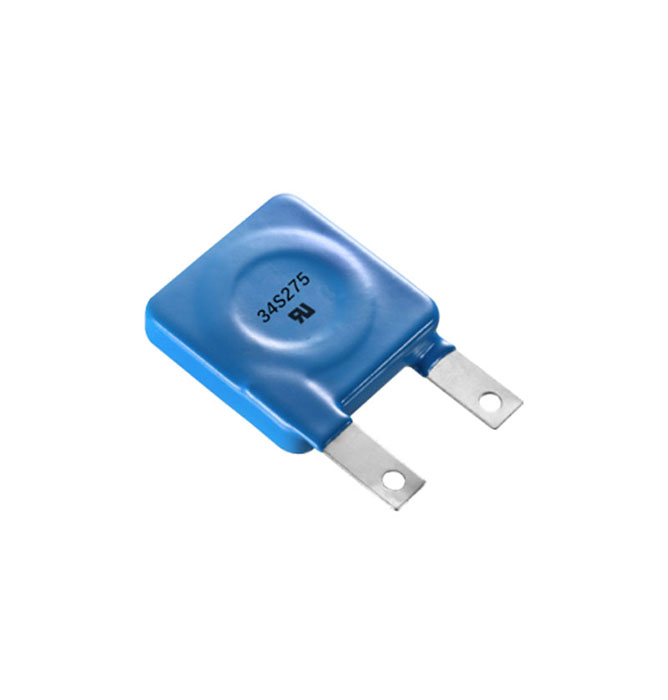

| Model Size | 34mm X34mm |
| Operating/Storage Temperature | -40℃~ +85℃/-40℃~ +125℃ |
| Withstanding Surge Current | 25000A |
| Approved Monogram | UL |
| Series | MaximunAllowable Voltage | Varistor Voltage | Maximun Clamping Voltage | ||||
| AC rms(V) | DC(V) | Min. | Vb(Vdc) | Max. | Vc(V) | lp(A) | |
| JRS | 130~1000 | 170~1465 | 185~1620 | 200~1800 | 225~1980 | 330~2970 | 150 |
Product Structure Chart:
Production Process:
Advanced Equipment:
Product Packaging Drawing:

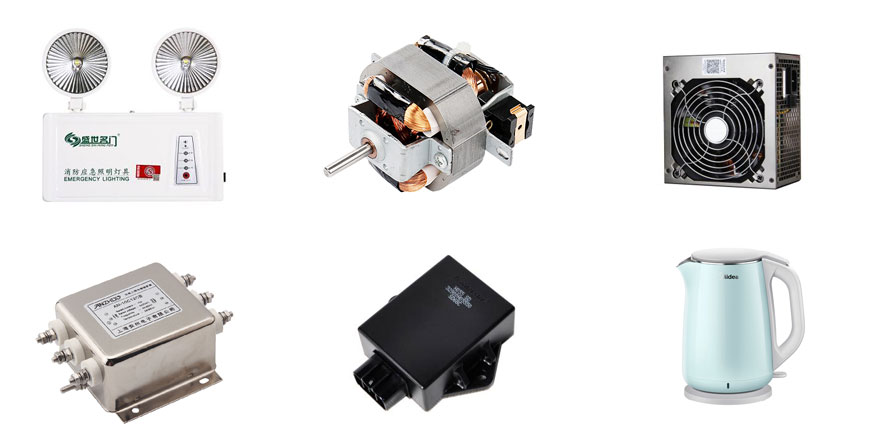

Application Area :
1. Overvoltage protection for transistors, IC, Silicon-controlled and semiconductor switching elements and various electrical equipment.
2. Surge absorption and overvoltage protection for household appliances and industrial appliances.
3. Surge absorption of relays and solenoid valves, elimination of electrostatic discharge and noise signals.
4. Lightning protection and overvoltage protection of telephone program-controlled exchange, communication equipment, leakage switch, etc.
5. Suitable for power strip and power surge suppressor.
6. Traffic or railway signal installation system, surge protection of remote automatic control device of wiring circuit
