PRODUCT DESCRIPTION
Electrical Characteristics:

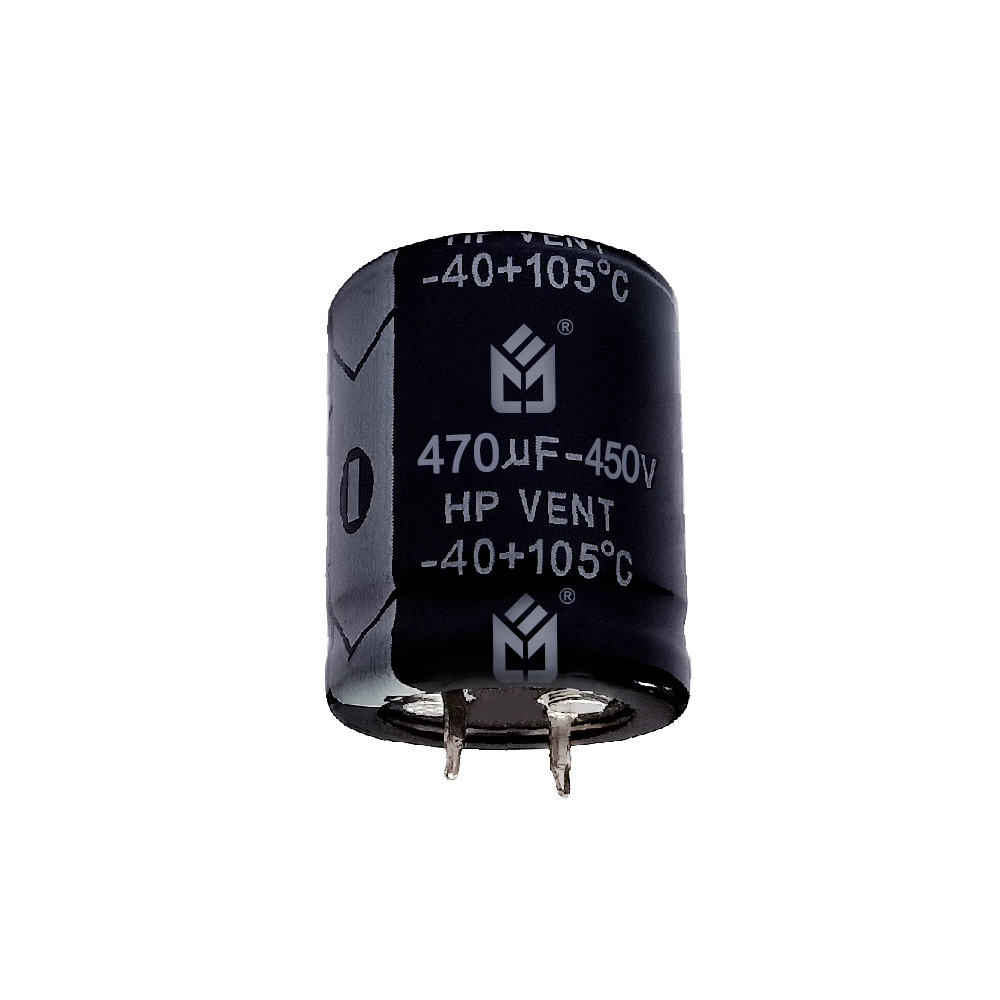

450V 470uf Snap-in Type Electrolytic Capacitor
Voltage: 450V
Capacity: 470μF
Features: RoHS compliant; high ripple resistance; high reliability
Application areas: used in frequency converters, industrial power supplies and data processing equipment

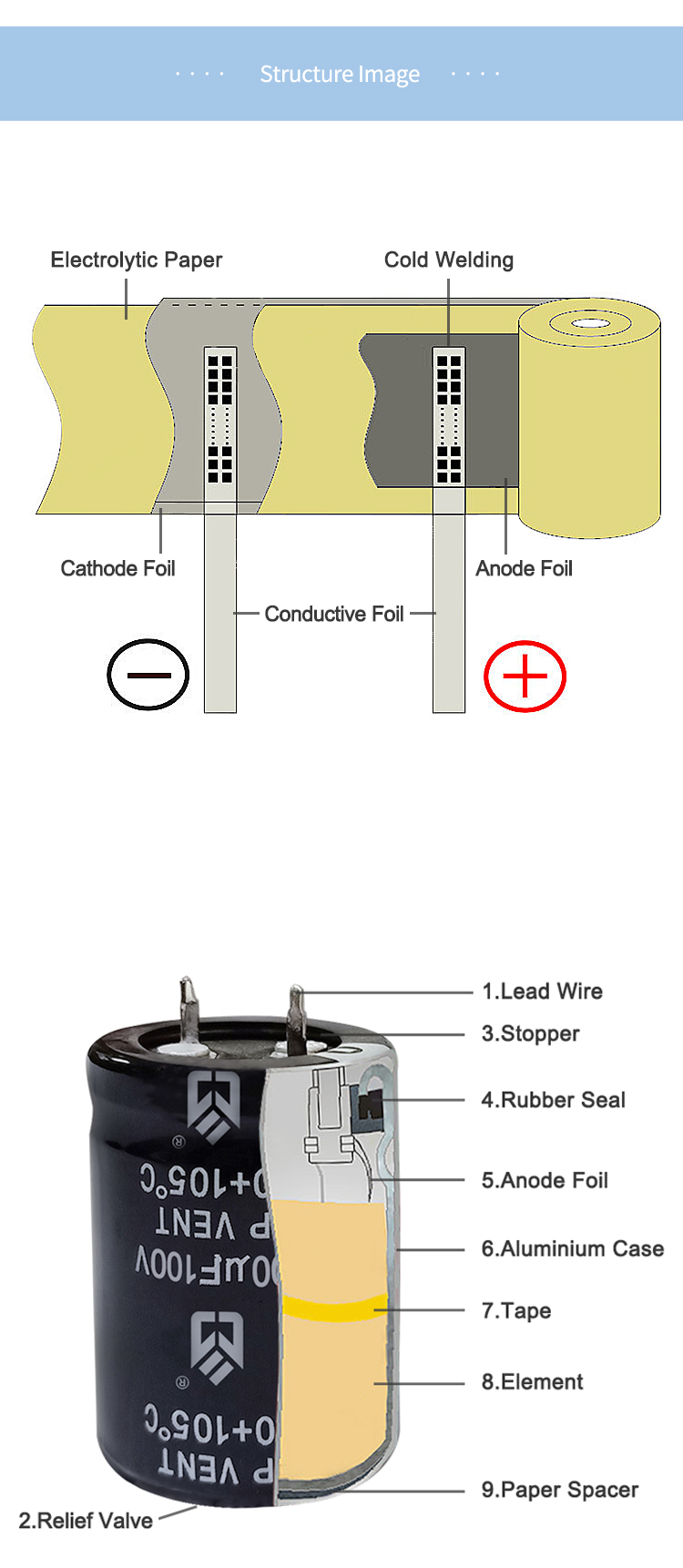

Product Structure Chart:
Application Area :
Certifications :
*FAQ:
What are the advantages of solid conducting polymers over liquid electrolytes?
The use of solid conducting polymers can reduce the equivalent series resistance ESR. Explained with the most basic circuit knowledge, that is, the better the conductivity, the lower the relative resistance. And the lower the resistance, the performance can be improved in many aspects.
Other differences in performance are also derived from the use of solid conducting polymers. For example, the presence of a solid electrolyte will prevent the liquid from volatilizing at a high temperature like a liquid electrolyte, which will eventually cause the capacitor to explode.
Relatively, the high temperature performance of the solid state is also stable, because the solid electrolyte used is relatively difficult to decompose at high temperature. At the same time, the service life of solid capacitors is significantly longer than that of liquid capacitors.
Also, the circuit-related ripple current is higher.
