Axial Solid Electrolytic Capacitor 47uf 100V

PRODUCT DESCRIPTION

Electrical Characteristics:

Type

Aluminum Electrolytic Capacitor

Place of Origin

Guangdong, China

Supplier Type

Original manufacturer

Capacitance

0.1-10000uF

Tolerance

±20%

Package Type

Through Hole

Rated Voltage

16V-500V

Operating Temperature

-40+85℃

ESR (Equivalent Series Resistance)

100

Applications

Consumer electronics, wind turbine, smart grid

Circuit Type

Amplifier & Audio Circuit

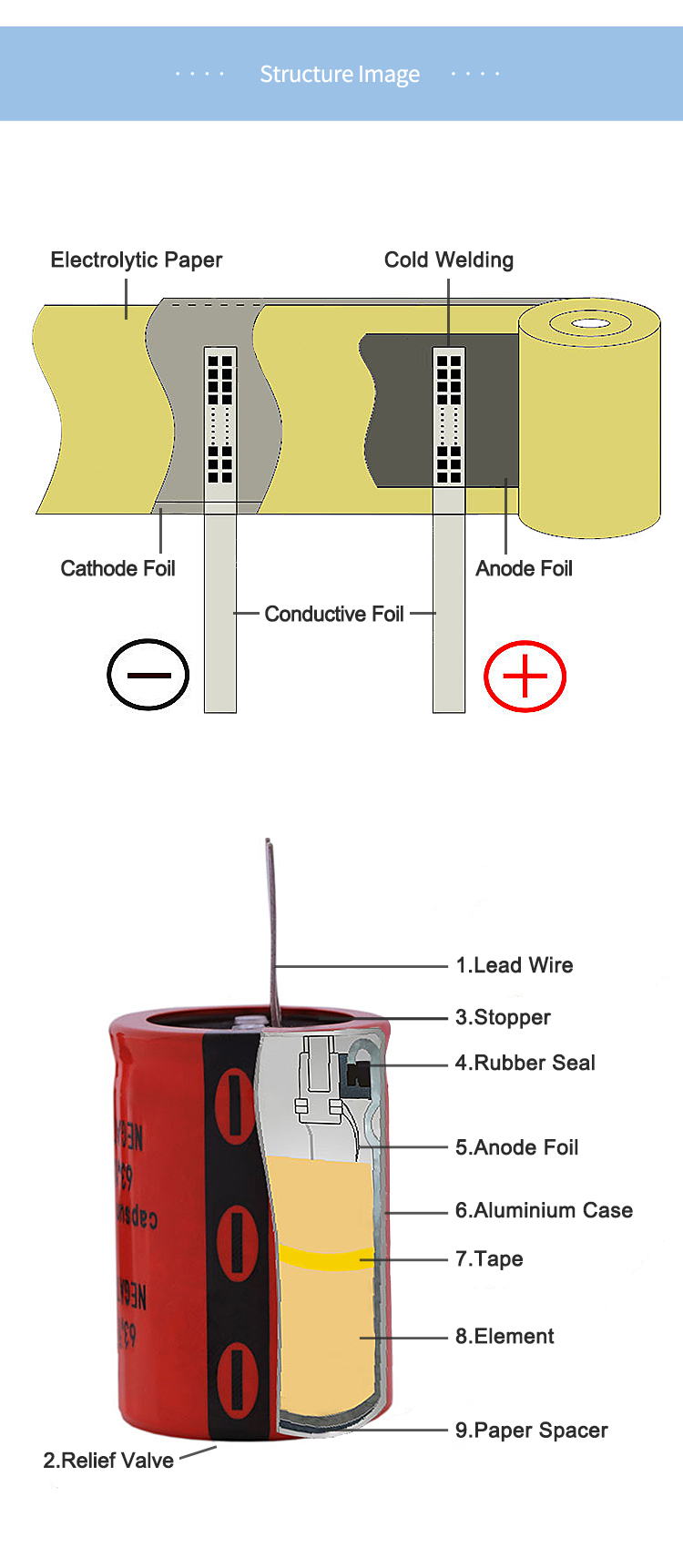

Product Structure Chart:

Axial Solid Electrolytic Capacitor 47uf 100V

Advanced Equipment:

Product Packaging Drawing:

Application Area :

Axial Solid Electrolytic Capacitor 47uf 100V

Certifications :

Axial Solid Electrolytic Capacitor 47uf 100V

Dongguan Zhixu Electronic Co., Ltd. (also JYH HSU(JEC)) factories are ISO-9000 and ISO-14000 certified. JEC X2, Y1, Y2 capacitors and varistors have passed these certifications:

CQC (China)

VDE (Germany)

CUL (America/Canada)

KC (South Korea)

ENEC (EU)

CB (International Electrotechnical Commission)



All of our capacitors are in line with the EU ROHS directives and REACH regulations.

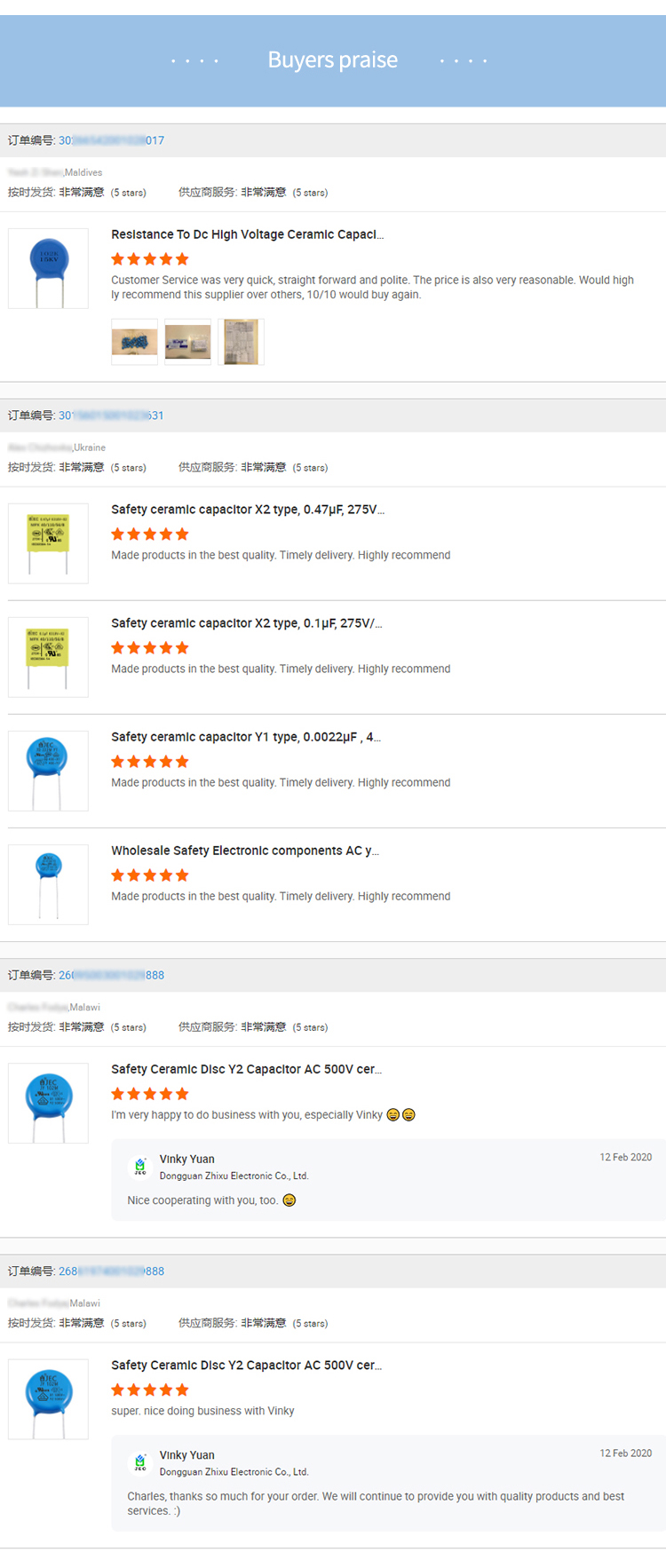

Customer Feedback :

Axial Solid Electrolytic Capacitor 47uf 100V

*FAQ:

Q: What are the parameters of electrolytic capacitor?

A: 1)Rated capacitance: refers to the nominal value at a temperature of 25°C at 120Hz. The rated capacitance is the capacitance marked with the unit.

2)Basic unit: The basic unit of a capacitor is farad (F), but this unit is too large when used in actual situation. Other smaller units are as follow:

1F=1000mF, 1mF=1000μF, 1μF=1000nF, 1nF=1000pF

3)Rated voltage: The rated voltage refers to the maximum effective value of the DC voltage that can be continuously applied to the capacitor at the lowest ambient temperature and the rated ambient temperature.

4)Insulation resistance

A leakage current will be generated after a A DC voltage is applied to a capacitor. insulation resistance is the ratio of the DC voltage and leakage current.

5)Time constant

Time constant is used to evaluate the insulation of large capacitor. It is equal to the result of insulation resistance multiplying capacitance.

6)Loss

Capacitor loss includes: dielectric loss and metal loss. Dielectric loss is the energy consumed by the collision between molecules caused by the polarization process of the medium under the electric field. In actual situation, the equivalent resistance is the main cause of capacitor loss.

7)Frequency

Generally speaking, the capacitance of capacitors decreases as the frequency increases.
