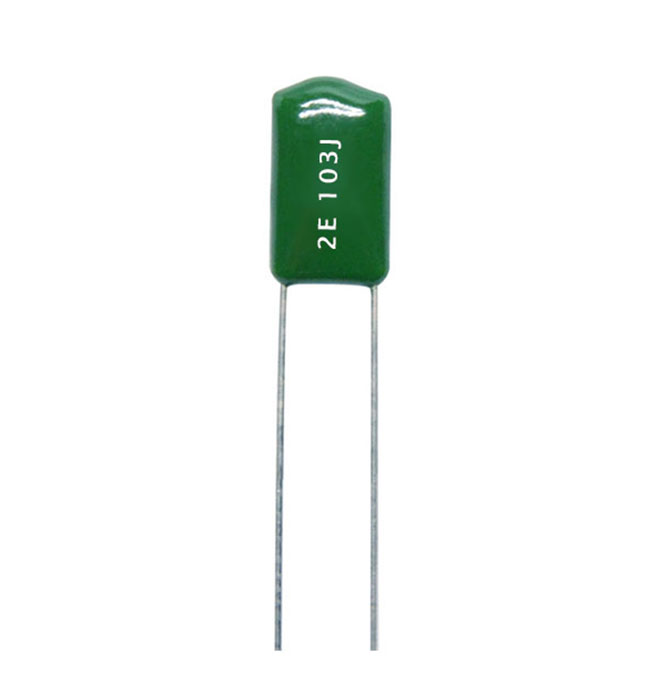

CL11 2E 103J

Product features:

The lead wire is directly spot-welded to the electrode, so the loss is small. The epoxy resin is impregnated in vacuum to improve the moisture resistance and mechanical strength.


PRODUCT DESCRIPTION

Electrical characteristics:

Technical requirements reference StandardGB/T 6346 (IEC 60384-11)
Climatic Category55/100/21
Operating Temperature-55℃~100℃(+85℃~+105℃:decreasing factor1.25% per℃ for UR
Rated Voltage50V、63V、100V、160V、250V、400V、630V、1000V、1200V
Capacitance Range0.001μF~0.47μF
Capacitance Tolerance±5%(J) 、±10%(K)
Withstand Voltage2.0UR , 5sec
Insulation Resistance(IR)CR≤ 0.1μF, IR≥30000MΩ;CR>0.1μF, IR≥10000MΩ at 100V,20℃,1min
Dissipation Factor (tgδ)1% Max , at 1KHz and 20℃

Product structure chart:

CL21 2E 103J

Production Process:

CBB21 224J 450V

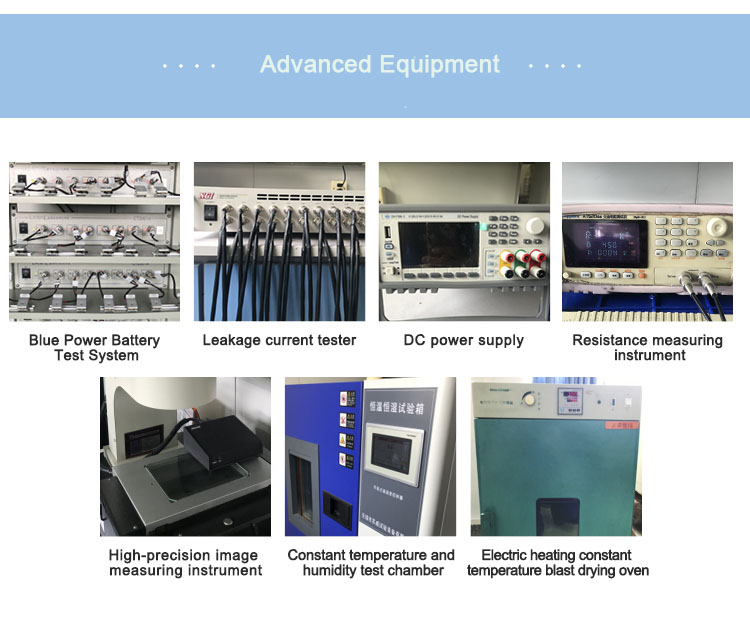

Advanced Equipment:

101 10KV

Product packaging drawing:

101 10KV

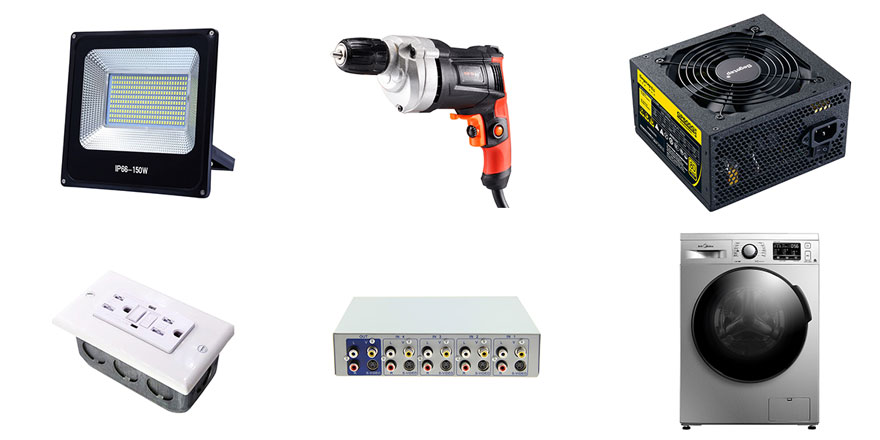

Application Area :

Suitable for DC and low-pulse circuits in various electronic circuits and various high-temperature energy-saving lamps.

CL21 2E 103J

*Matters Needing Attention:

1. Do not store the capacitor in corrosive gas, especially in the presence of chlorine, sulfur, acid, alkali, salt, moisture, etc.


2. The storage temperature and the relative humidity should not be too low or too high.
