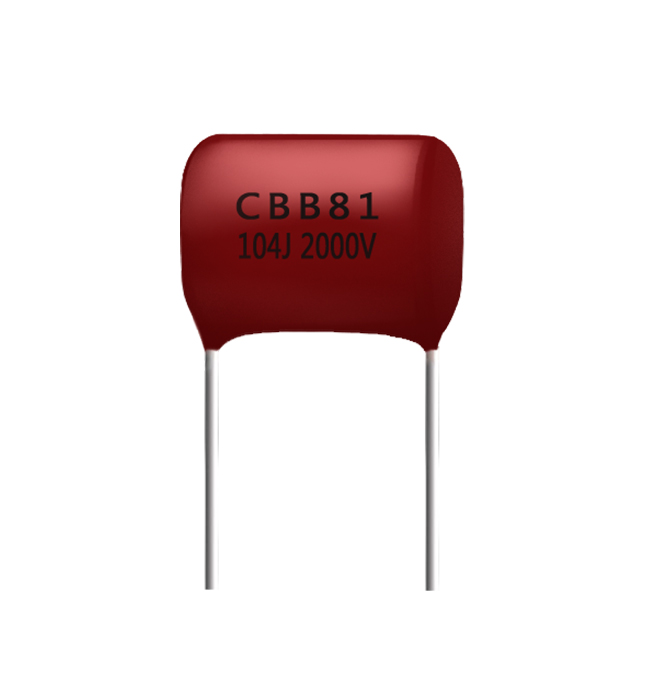

Film Capacitor CBB81 104J 2KV

Product features:

1. Metallized polypropylene film, non-inductive structure, large capacity, less change in capacity, and small amplitude of internal temperature rise.

2. Low loss at high frequency, strong self-healing ability, withstand high pulses, large current, and high frequency resistance of 100KHZ.

PRODUCT DESCRIPTION

Electrical Characteristics:

Technical requirements reference StandardGB/T 14579 (IEC 60384-17)
Climatic Category40/105/21
Operating Temperature-40℃~105℃(+85℃~+105℃:decreasing factor1.25% per℃ for UR)
Rated Voltage100V、250V、400V、630V、1000V
Capacitance Range0.001μF~3.3μF
Capacitance Tolerance±5%(J),±10%(K)
Withstand Voltage1.5UR,5sec
Insulation Resistance(IR)Cn≤0.33μF,IR≥15000MΩ ;Cn>0.33μF,RCn≥5000s at 100V,20℃,1minFor 60sec / 25℃For 60sec / 25℃
Dissipation Factor (tgδ)0.1% Max, at 1KHz and 20℃

Product Structure Chart:

Production Process:

CBB21 224J 450V

Advanced Equipment:

101 10KV

Product Packaging Drawing:

101 10KV

Application Area :

1. Widely used in high current, high frequency, DC, AC and pulse circuits.

2. Suitable for S correction circuit in color TV which requires small size and excellent performance.
