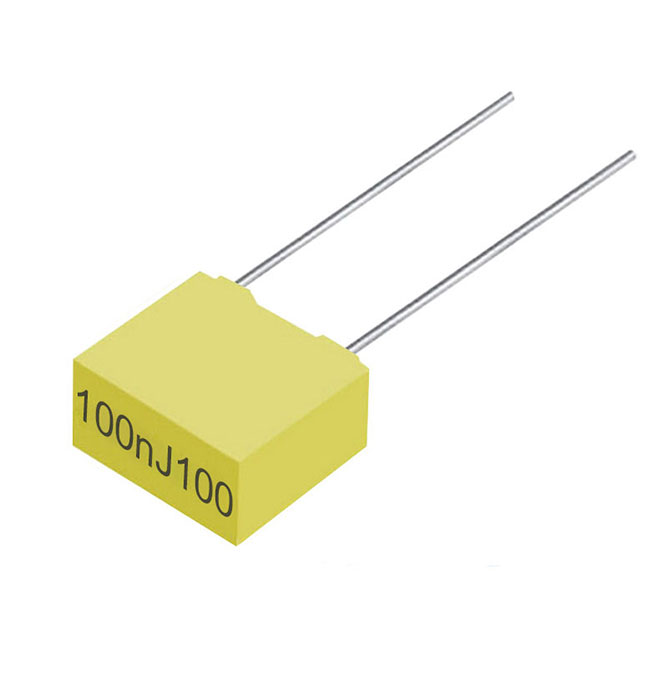

CL23B 100NJ100

Product features:

Small size, good self-healing, strong anti-pulse ability, high reliability

PRODUCT DESCRIPTION

Electrical characteristics:

Technical requirements reference StandardGB/T 7332 (IEC 60384-2)
Climatic Category55/125/56
Operating Temperature-55℃~105℃(+85℃~+105℃:decreasing factor1.25% per℃ for UR
Rated Voltage63V,100V,250V
Capacitance Range0.001μF~1μF
Capacitance Tolerance±5%(J) 、±10%(K)
Withstand Voltage1.5UR , 5sec
Insulation Resistance(IR)Cn≤0.33μF,IR≥15000MΩ ;Cn>0.33μF,RCn≥5000s at 100V,20℃,1min
Dissipation Factor (tgδ)1% Max , at 1KHz and 20℃

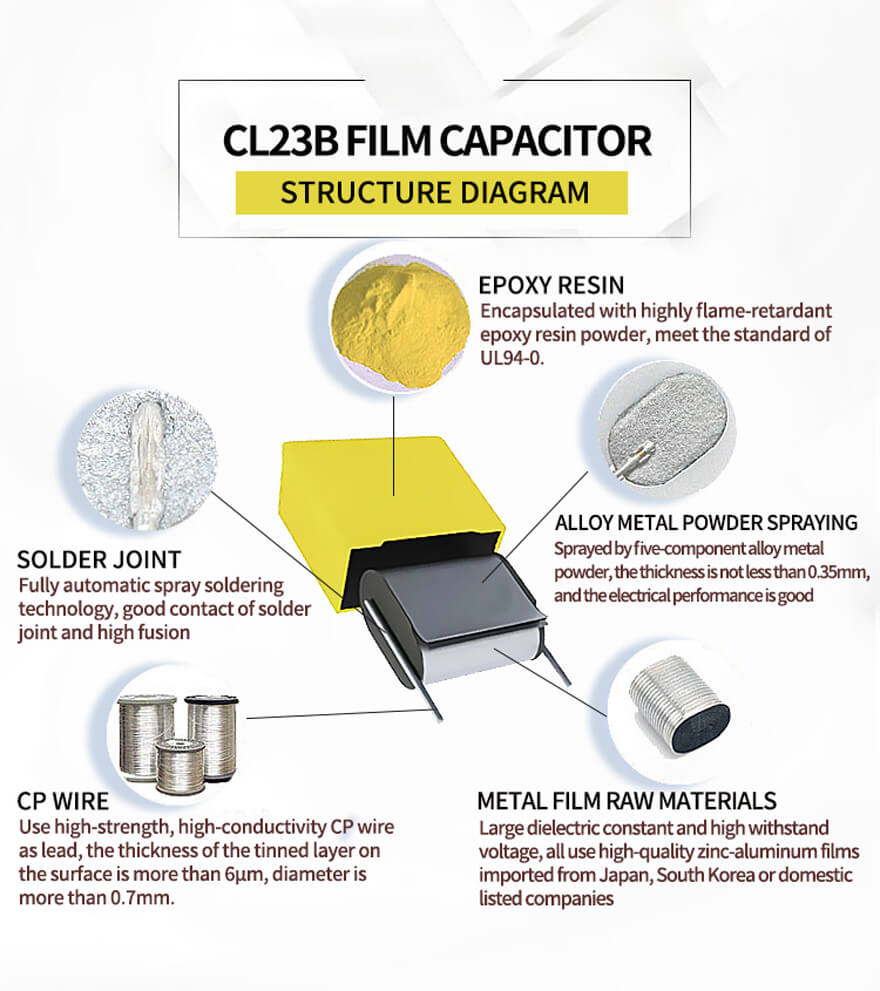

Product structure chart:

100NJ100

Production Process:

Advanced Equipment:

101 10KV

Product packaging drawing:

101 10KV

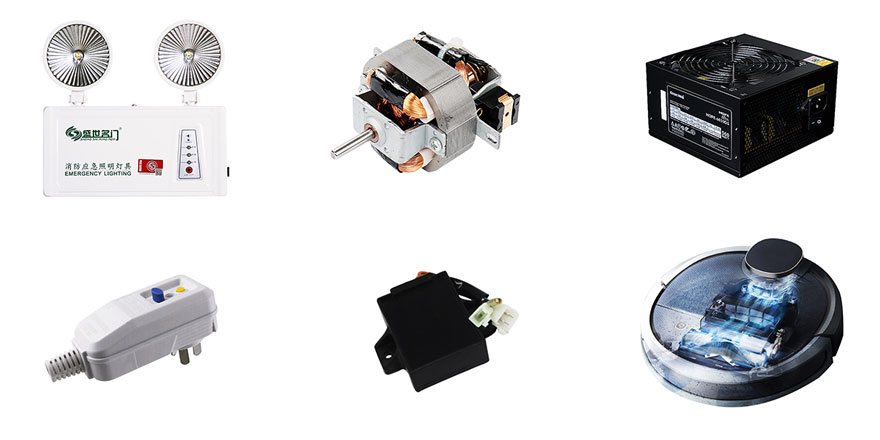

Application Area :

1. Suitable for bypass, DC blocking, coupling, decoupling circuits, DC or pulsating circuits.

2. Especially suitable for program-controlled exchanges, LCD monitor rectification, and automobile DC motor suppression interference.

100NJ100

*Matters Needing Attention:

1. Do not store the capacitor in corrosive gas, especially in the presence of chlorine, sulfur, acid, alkali, salt, moisture, etc.


2. The storage temperature and the relative humidity should not be too low or too high.
