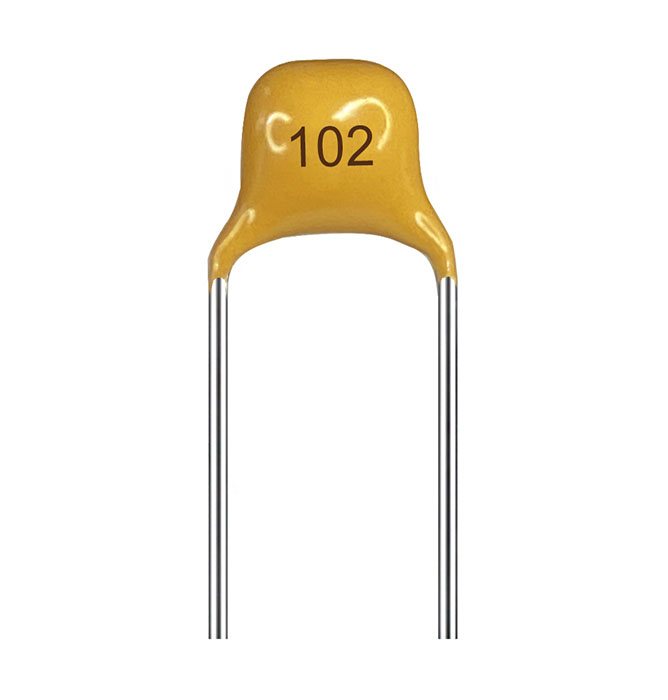

High Q Multilayer Ceramic Capacitor

PRODUCT DESCRIPTION

Electrical Characteristics:

Product name

Multi-layer Ceramic Capacitors

Construction

Ceramic

Appearance

Radial, horizontal

Feature

Small size, large capacitance, epoxy encapsulated, moisture-proof, shock resistant, high temperature resistant, high frequency temperature compensation type, and high dielectric constant type

Application

Used for DC isolation, coupling, bypass, etc. There are other DC types.

Rated Voltage

25VDC, 50VDC, 100 VDC ≥ 250VDC; By customer requirements

Capacitance Range(uF)

0.5pF ~ 47000 pF

Temp.Range(℃)

-55℃ ~ +125℃

Customization

Accept and provide customized content and sample services



Packaging & Delivery

20 pieces, boxes

Port: Hong Kong

Lead Time:

Quantity(Pieces)

1 - 1000

1001 - 3000

>3000

Est. Time(days)

14

30

To be negotiated

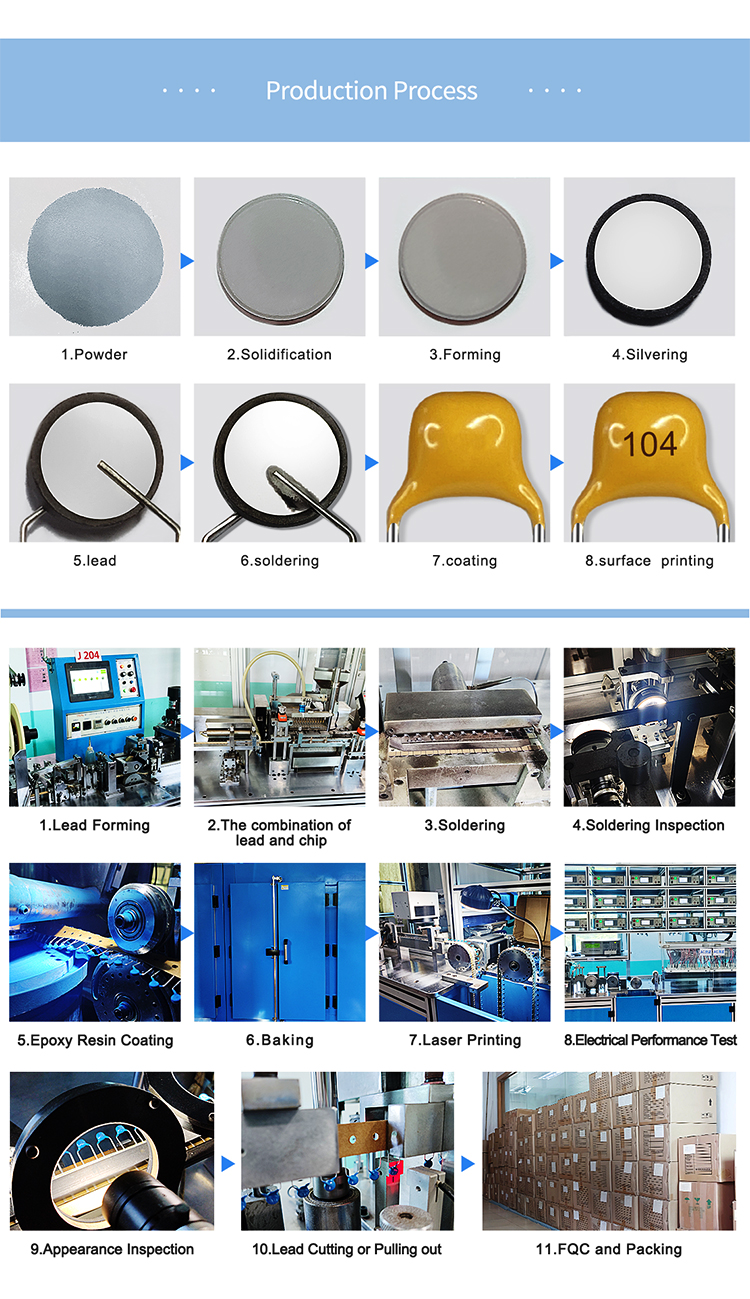

Production Process:

Multi-layer Ceramic Capacitor Production Process 2.jpg

Advanced Equipment:

Product Packaging Drawing:

Application Area :

High Q Multilayer Ceramic Capacitor

Certifications :

Dongguan Zhixu Electronic Co., Ltd. (also JYH HSU(JEC)) factories are ISO-9000 and ISO-14000 certified. JEC X2, Y1, Y2 capacitors and varistors have passed these certifications:

CQC (China)

VDE (Germany)

CUL (America/Canada)

KC (South Korea)

ENEC (EU)

CB (International Electrotechnical Commission)



All of our capacitors are in line with the EU ROHS directives and REACH regulations.


Customer Feedback :

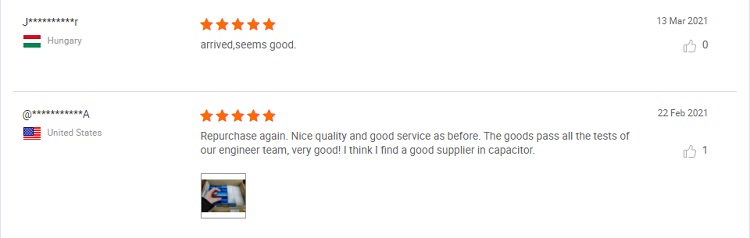

Client Feedback.jpg

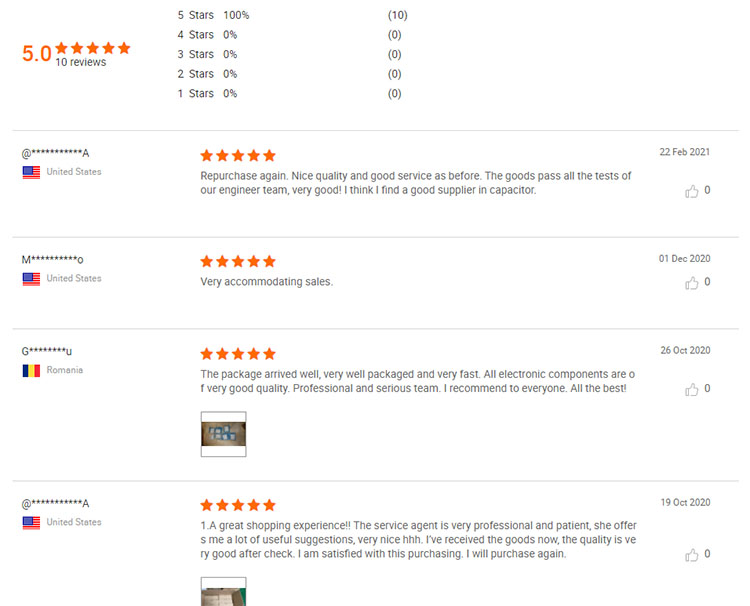

Customer Feedback.jpg

*FAQ:

Q: What is a multi-layer ceramic capacitor?

A: Multilayer ceramic capacitors are laminated ceramic dielectric films with printed electrodes (inner electrodes) in a staggered manner. After a one-time high-temperature sintering to form a ceramic chip, the two ends of the chip are sealed with a metal layer (outer electrode), thus forming a structure similar to a monolith, so it is also called a monolithic capacitor. In addition to the general characteristics of capacitors, MLCC has the characteristics of small size, large specific capacity, long life, high reliability, and suitable for surface mounting.



Q: Are multilayer ceramic capacitors polarized?

A: Multilayer ceramic capacitors (or monolithic capacitors) are non-polar.
