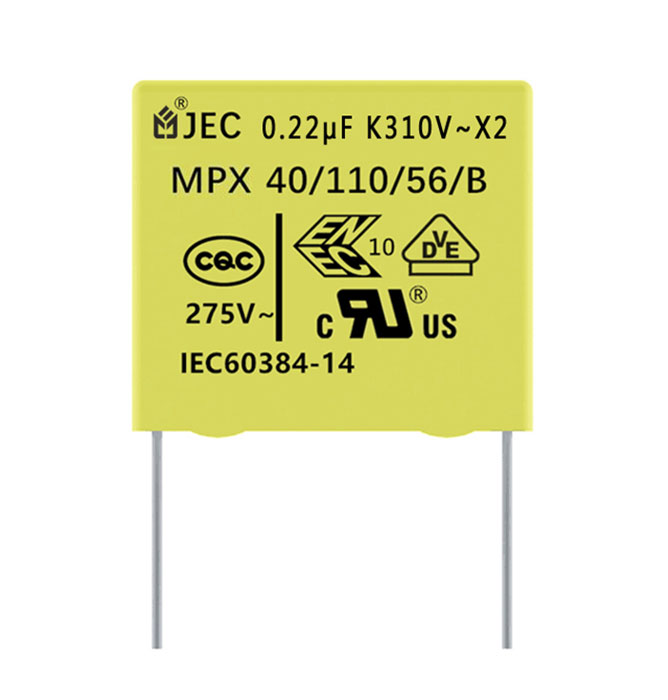

Safety Capacitor 224K 275V 310V

Product features:

Product Features

1. High reliability to prevent active or passive flammability, strong self-healing, high voltage strength, low capacity fading, low impedance and strong interference suppression.

2. The operating temperature can reach more than 110 ° C. We could also provide halogen-free capacitors which meet the RoHS directive 2011/65 / EC.


PRODUCT DESCRIPTION

Electrical Characteristics:

Technical requirements reference StandardGB/T 6343 (IEC 60384-11)
Climate and flame retardant grade40/110/56/B
Operation Temperature Range-40℃~110℃
Rated Voltage310VAC at 50/60Hz
Capacitance Range0.001μF~2.2μF
Capacitance Tolerance±5%(J),±10%(K),±20%(M)
Withstand voltageT-T 1200VDC at 60 sec ; T-C 2110VAC at 60 sec
Insulation ResistanceCn≤0.33μF,IR≥15000MΩ ; Cn>0.33μF, RCn≥5000s at 100V,20℃,1minFor 60sec / 25℃For 60sec / 25℃
Dissipation Factor0.1% Max, at 1KHz and 20℃


Product Structure Chart:

104K 275V 310V

Production Process:

104K 275V 310V

Application Area :

Connected between the power insulator and the conductor (meeting the electromagnetic compatibility standard), and apply to the circuits including high frequency, DC, AC, coupling, jump pulse, etc.


104K 275V 310V
