Product features:
Product Features
1. High reliability to prevent active or passive flammability, strong self-healing, high voltage strength, low capacity fading, low impedance and strong interference suppression.
2. The operating temperature can reach more than 110 ° C. We could also provide halogen-free capacitors which meet the RoHS directive 2011/65 / EC.
PRODUCT DESCRIPTION
Electrical Characteristics:
| Technical requirements reference Standard | GB/T 6343 (IEC 60384-11) |
| Climate and flame retardant grade | 40/110/56/B |
| Operation Temperature Range | -40℃~110℃ |
| Rated Voltage | 310VAC at 50/60Hz |
| Capacitance Range | 0.001μF~2.2μF |
| Capacitance Tolerance | ±5%(J),±10%(K),±20%(M) |
| Withstand voltage | T-T 1200VDC at 60 sec ; T-C 2110VAC at 60 sec |
| Insulation Resistance | Cn≤0.33μF,IR≥15000MΩ ; Cn>0.33μF, RCn≥5000s at 100V,20℃,1minFor 60sec / 25℃For 60sec / 25℃ |
| Dissipation Factor | 0.1% Max, at 1KHz and 20℃ |

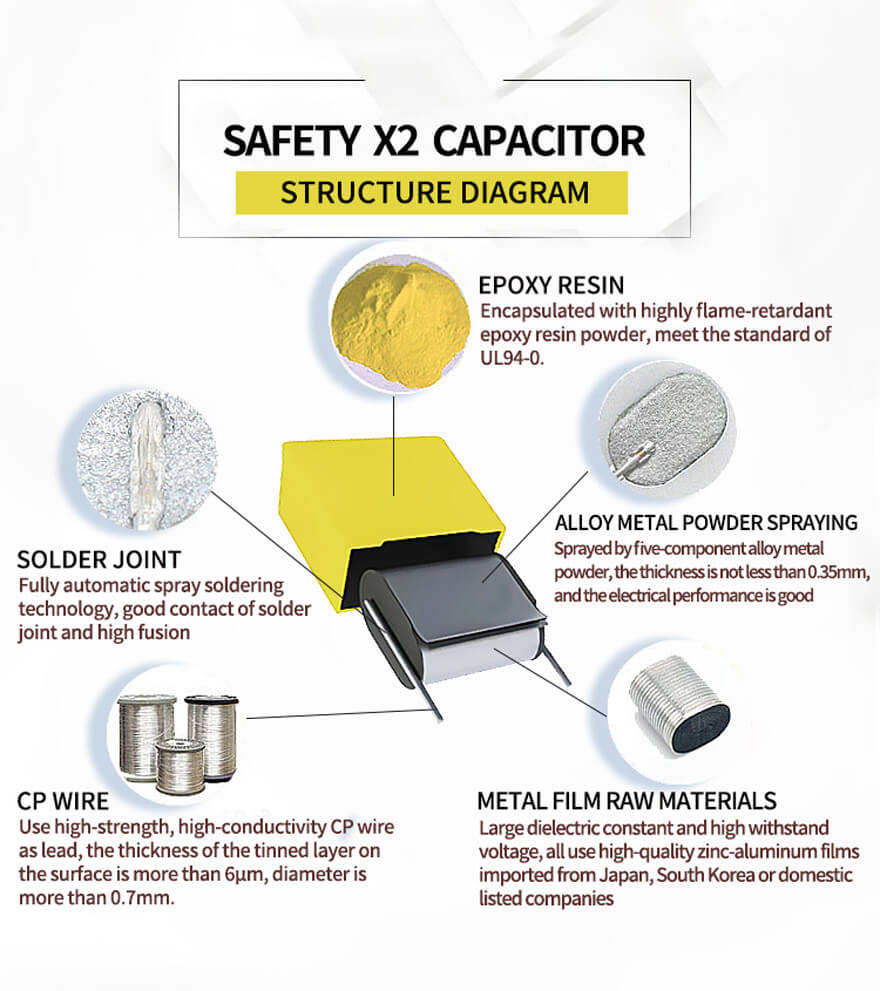

Product Structure Chart:

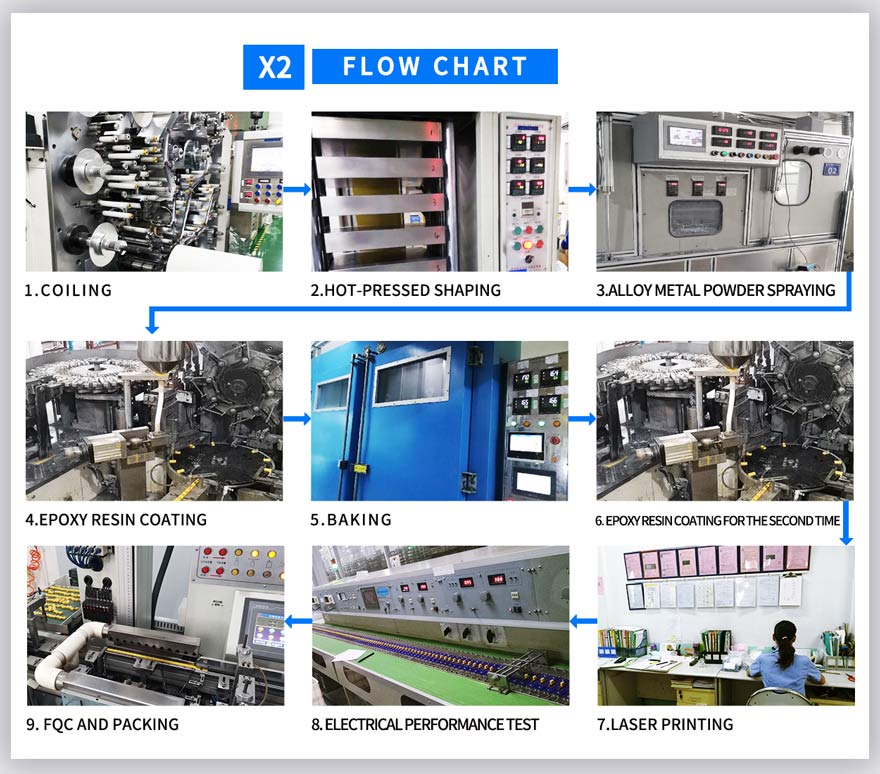

Production Process:
Advanced Equipment:
Product Packaging Drawing:
Application Area :
Connected between the power insulator and the conductor (meeting the electromagnetic compatibility standard), and apply to the circuits including high frequency, DC, AC, coupling, jump pulse, etc.
*FAQ:
1. Do not store the capacitor in corrosive gas, especially in the presence of chlorine, sulfur, acid, alkali, salt, moisture, etc.
2. The storage temperature and the relative humidity should not be too low or too high.
