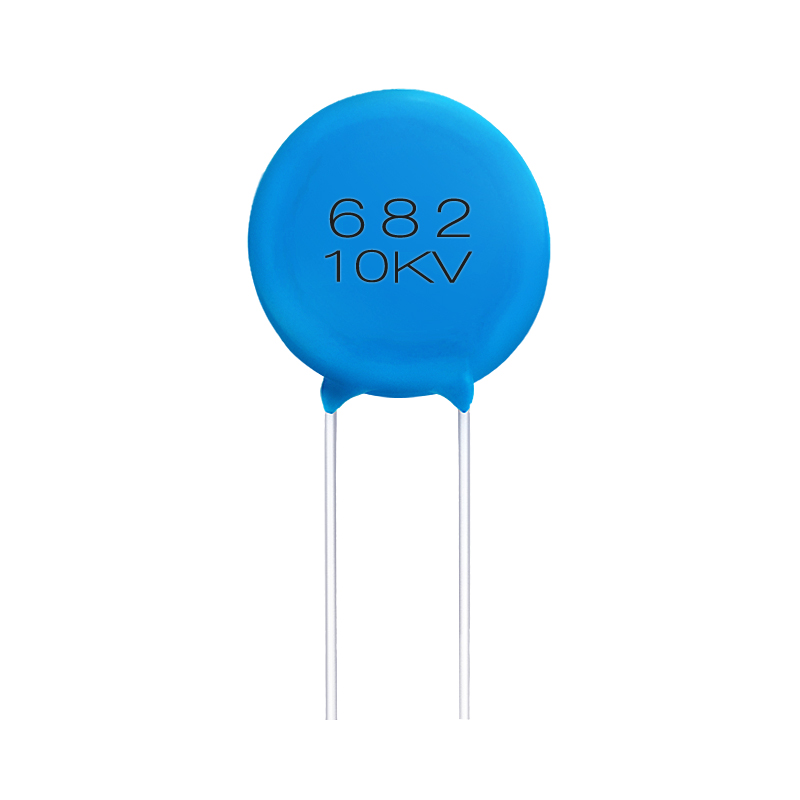

High Voltage Ceramic Capacitor Assortment


Electrical Characteristics:

Rated Voltage(UR)

500 / 1K / 2K / 3K / 4K / 5K / 6K / 7K / 8K / 9K / 10K / 15K / 20K / 25K / 30K / 40K /50K VDC

Capacitance Range

1pF to 100000pF

Operating Temperature

-25℃ to +85℃

Temperature Characteristic


Flame Retardant Epoxy


Dongguan Zhixu Electronics is an expert in ceramic capacitor manufacturing because of its:

1. Advanced production equipment and testing equipment

2. Perfect technical research and development after-sales service system

3. The strong scientific research force of its own technical personnel

Production Process:

High Voltage Ceramic Capacitor Assortment

Application Area :

High Voltage Ceramic Capacitor Assortment

High-voltage ceramic capacitors are wear-resistant and can withstand high voltage, so they are suitable for high-voltage bypass and coupling circuits.

The disc ceramic capacitor has low dielectric loss and is especially suitable for use in circuits such as television receivers and scanning.

Certifications :

High Voltage Ceramic Capacitor Assortment


Q: Does the capacitor have an upper voltage limit?

A: Yes, capacitors have withstand voltage values. The so-called withstand voltage value refers to the maximum value that the capacitor can withstand. For example, for a capacitor with a nominal withstand voltage of 100V, if it is used in a 10V circuit, the voltage that the capacitor can withstand is 10V, and if it is used in a 100V circuit, the voltage that this capacitor can withstand is 100V, but this capacitor can only withstand a maximum voltage of 100V, otherwise it will be damaged.

Q: What are the main factors that determine the capacitance of a capacitor?

A: The capacitance of a capacitor is mainly determined by the following three factors:

(1) The area of the electrode plates

(2) The distance between the two electrodes

(3) Material of the dielectric
