Ceramic Capacitor 104

Product features:

Ceramic Capacitor 104 Features:

Multiple temperature levels, low loss and high capacity stability

PRODUCT DESCRIPTION

Electrical characteristics:

Ceramic Capacitor 104 Electrical Characteristics:

Technical requirements reference StandardGB/T 2693-2001 ; GB/T 5966-1996
Rated Voltage(UR)500 / 1K / 2K / 3K / 4K / 5K / 6K / 7K / 8K / 9K / 10K / 15K / 20K / 25K / 30K / 40K /50K VDC
Capacitance Range1pF to 100000pF
Withstand Voltage<500V,2.5UR ; ≥500V≤3KV,1.5UR+500V ; >3KV,1.2UR
Capacitance ToleranceNPO±0.5pF(D)±5%(J) ; SL±5%(J)±10%(K),Y5P,Y5U±10%(K ) ; Y5U,Y5V±20%(M)
Dissipation Factor (tgδ)C<30pF,Q≥400+20C ; C≥30pF,Q≥1000 ,Y5P,Y5U,Y5V:tgδ≤2.0% ; Y5P:tgδ≤0.5% ; Y5R:tgδ≤0.3%
Insulation Resistance(IR)IR≥10000MΩ,1min,100VDC,IR≥4000MΩ,1min,100VDC
Operating Temperature Range-25℃ to +85℃
Temperature CharacteristicNPO,SL,Y5P,Y5U,Y5V
Flame Retardant Epoxy ResinUL94-V0

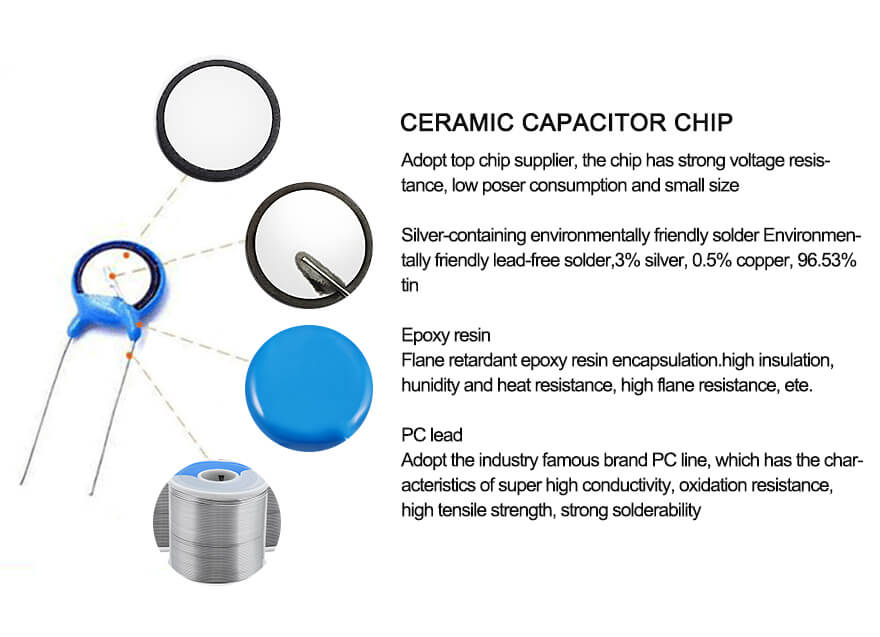

Product structure chart:

Ceramic Capacitor 104 Structure

Ceramic Capacitor 104 Structure

Production Process:

Ceramic Capacitor 104 Production Process

Ceramic Capacitor 104 Production Process

Ceramic Capacitor 104 Production Process

Advanced Equipment:

Ceramic Capacitor 104 Advanced Equipment

Ceramic Capacitor 104 Advanced Equipment

Product packaging drawing:

Ceramic Capacitor 104 Packaging Diagram

Ceramic Capacitor 104 Packaging Diagram

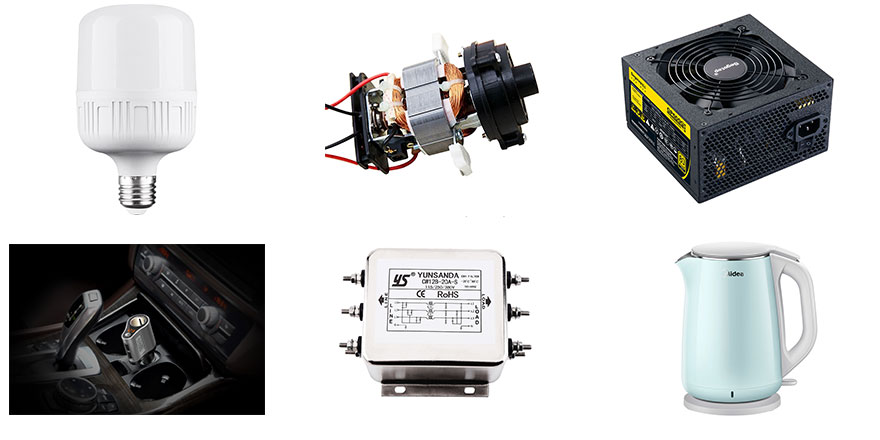

Application Area :

Ceramic Capacitor 104 Application Area

1. Apply to high-voltage bypass and coupling circuits, or the circuit responsible for line scanning in TV.

2. Apply to tuning circuits or those need to compensate for temperature effects.

3. Apply to the circuits requiring large capacity, such as energy storage, memory circuits, etc.

Ceramic Capacitor 104 Application Area

*Matters Needing Attention:

1. Do not store the capacitor in corrosive gas, especially in the presence of chlorine, sulfur, acid, alkali, salt, moisture, etc.


2. The storage temperature and the relative humidity should not be too low or too high.
