0.47 uF Film Capacitor in Power Supply

PRODUCT DESCRIPTION

Electrical Characteristics:

Metallized polypropylene film non-inductive structure

Low frequency loss

Internal temperature rise is small

Excellent flame retardant properties (in line with UL94V-0)

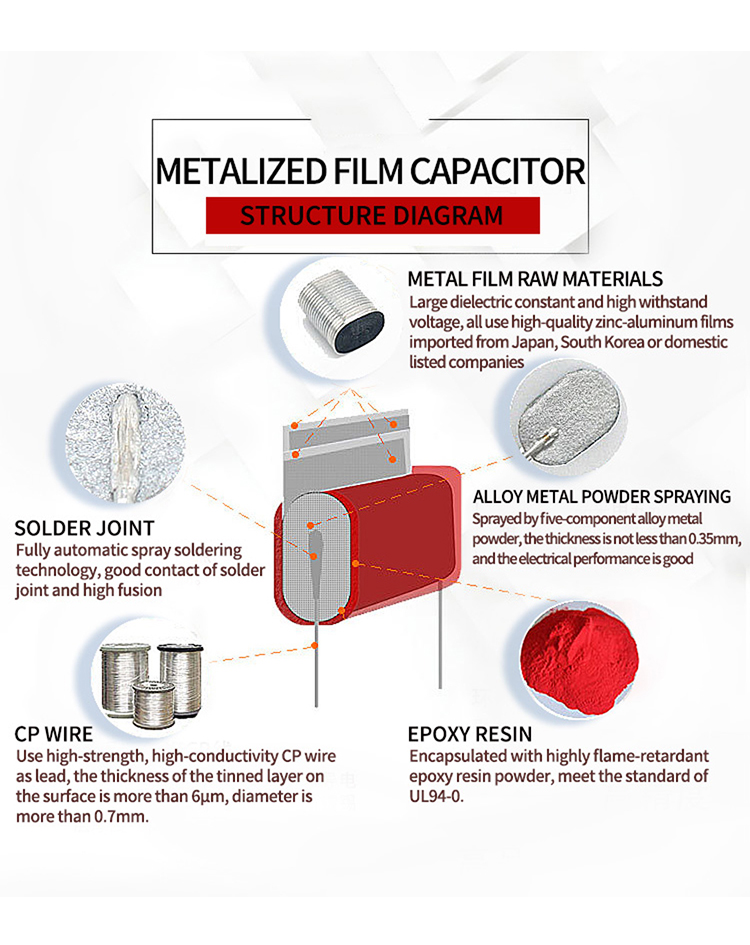

Product Structure Chart:

0.47 uF Film Capacitor in Power Supply

Made of metallized polypropylene film wound into non-inductive structure, this series adopt tinned copper clad steel wire, flame retardant epoxy resin powder encapsulation or plastic shell, flame retardant epoxy resin filling.

Production Process:

Advanced Equipment:

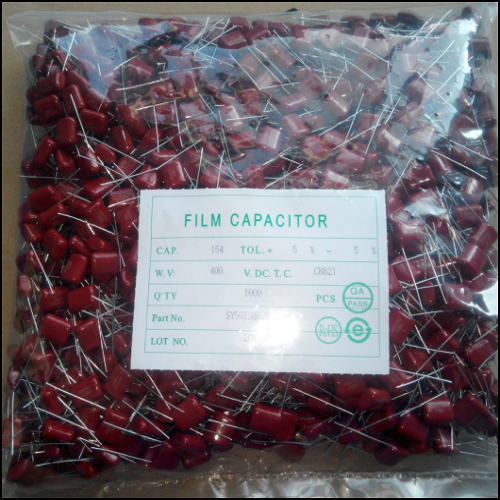

Product Packaging Drawing:

0.47 uF Film Capacitor in Power Supply



Plastic bag is the minimum packing. The quantity can be 100, 200, 300, 500 or 1000PCS.


The label of the RoHS includes the product name, specification, quantity, lot No, manufacture date etc.


Application Area :

Certifications :

*FAQ:

Q: What is a metalized polyester film capacitor?

A: Metalized film capacitors are capacitors made of organic plastic film as the dielectric, metalized film as the electrode, and made by winding (except for the laminated structure). The films used in metalized film capacitors include polyethylene and poly Acrylic, polycarbonate, etc., in addition to the winding type, there are also laminated types. Film capacitors with polyester film as the dielectric are called metallized polyester film capacitors.


Q: What is the difference between film capacitors and electrolytic capacitors?

A: The difference between film capacitors and electrolytic capacitors lies mainly in their own composition materials and characteristics. Film capacitors are composed of metal aluminum and other metal foil electrodes and plastic film. The characteristics of film capacitors are non-polarity, high insulation resistance, and frequency. Covering a wide range, etc.

A: Electrolytic capacitors are composed of metal aluminum or tantalum as the positive electrode, liquid or solid electrolyte and other electrical materials as the negative electrode, and the intermediate metal oxide film dielectric. The electrolytic capacitor is characterized by large volume and large capacity per unit volume.
