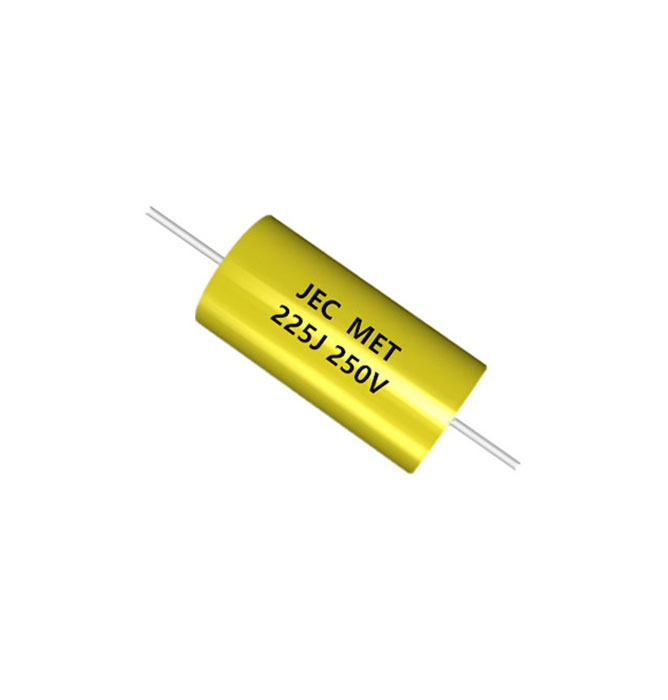

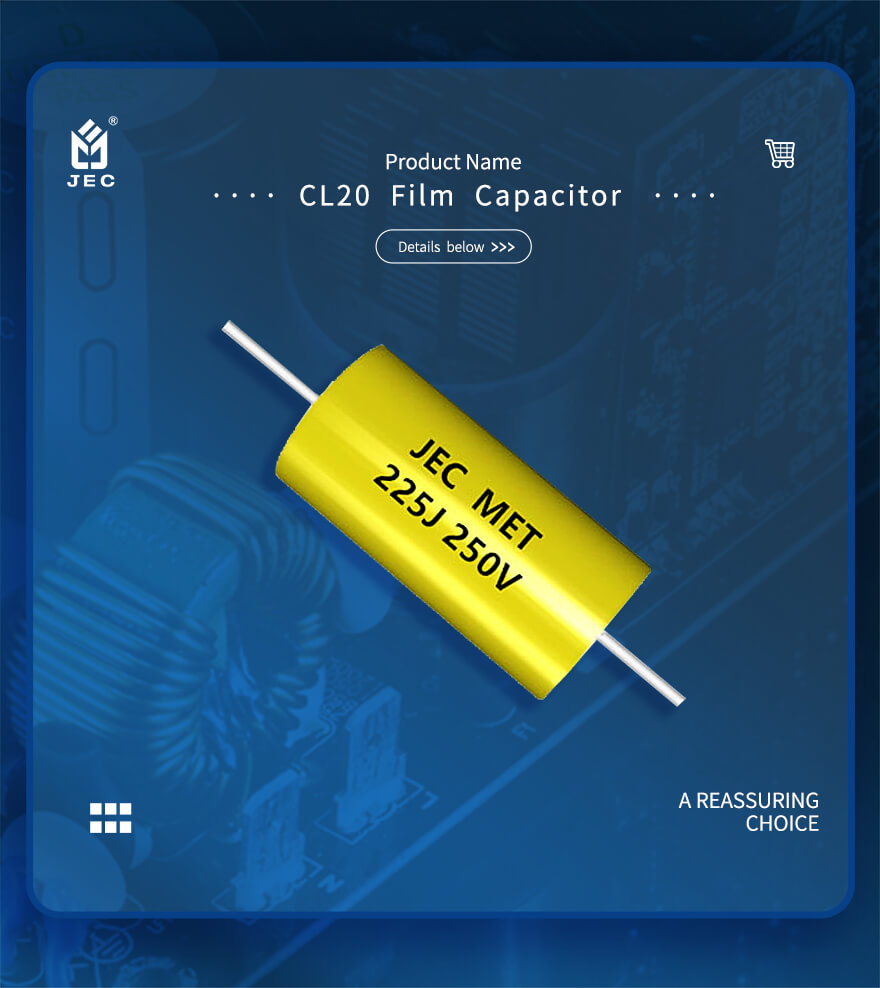

CL20 225J 250V

Product features:

The outer packaging is polyester tape with epoxy resin at both ends, small size, light weight and excellent self-healing properties.


PRODUCT DESCRIPTION

Electrical characteristics:

Technical requirements reference StandardGB/T 7332 (IEC 60384-2)
Climatic Category40/105/21
Operating Temperature-40℃~105℃
Rated Voltage50V、63V、100V、160V、250V、400V、630V
Capacitance Range0.001μF~33μF
Capacitance Tolerance±5%(J) 、±10%(K)
Withstand Voltage1.6UR , 2sec
Insulation Resistance(IR)Cn≤0.33μF,IR≥15000MΩ ;Cn>0.33μF,RCn≥5000s at 100V,20℃,1min
Dissipation Factor (tgδ)1% Max , at 1KHz and 20℃

Product structure chart:

225J 250V

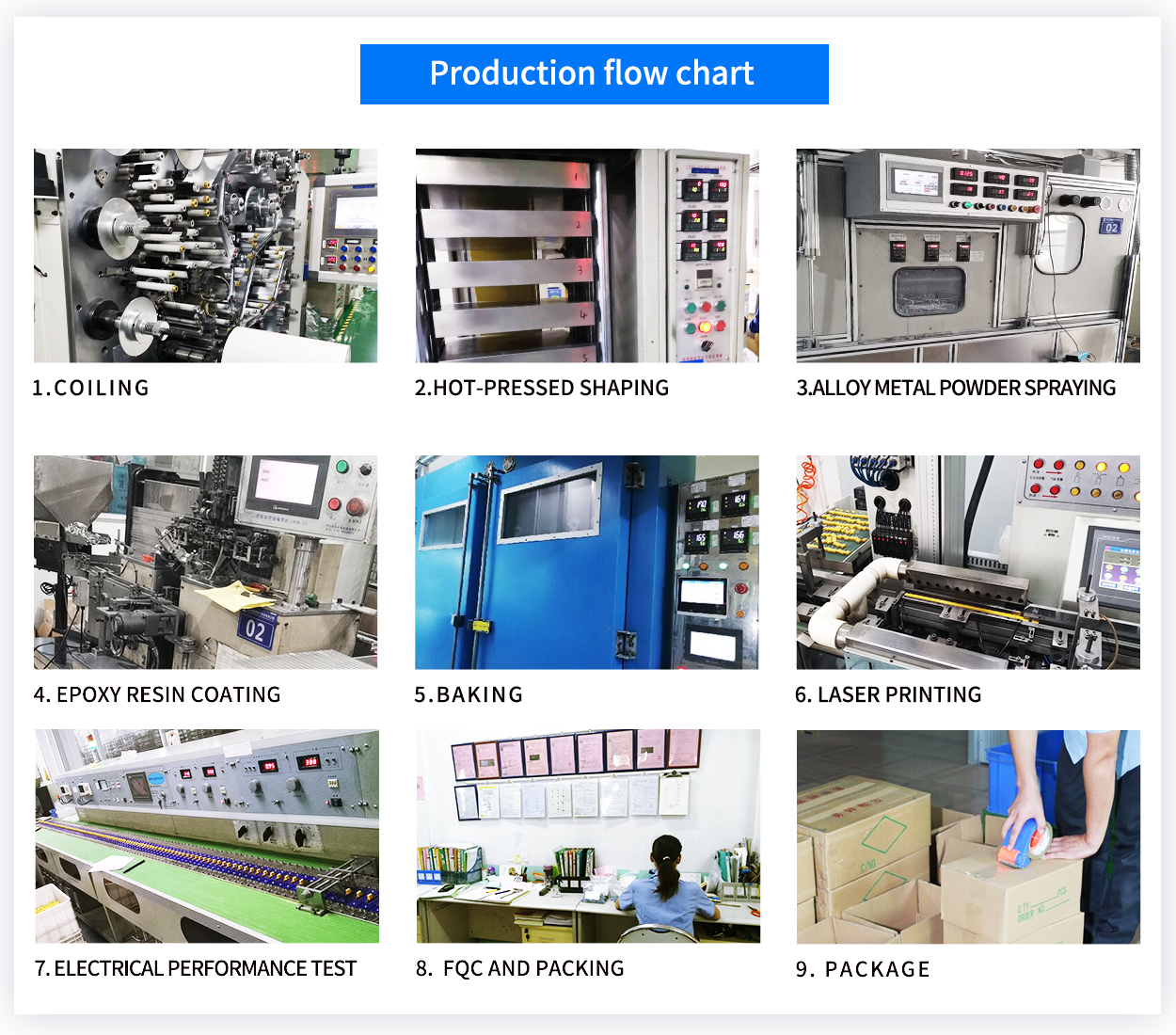

Production Process:

Advanced Equipment:

101 10KV

Product packaging drawing:

101 10KV

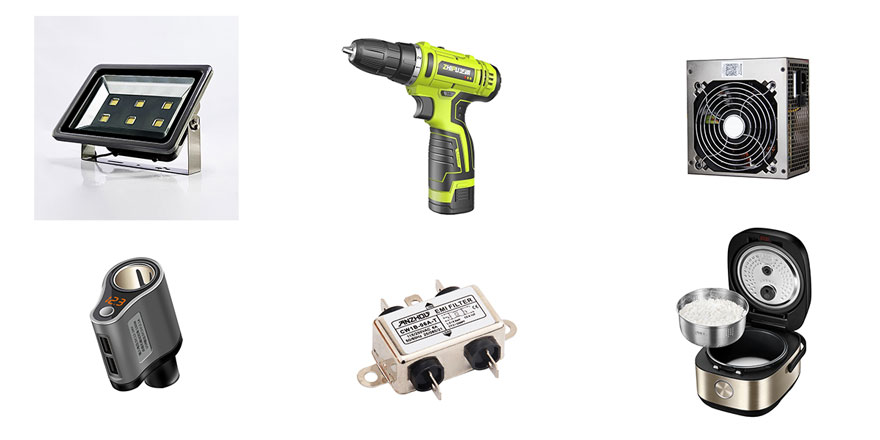

Application Area :

Suitable for DC and pulsating circuits of electronic equipment, with the functions of DC blocking, bypass, coupling and decoupling.

225J 250V

*Matters Needing Attention:

1. Do not store the capacitor in corrosive gas, especially in the presence of chlorine, sulfur, acid, alkali, salt, moisture, etc.


2. The storage temperature and the relative humidity should not be too low or too high.
