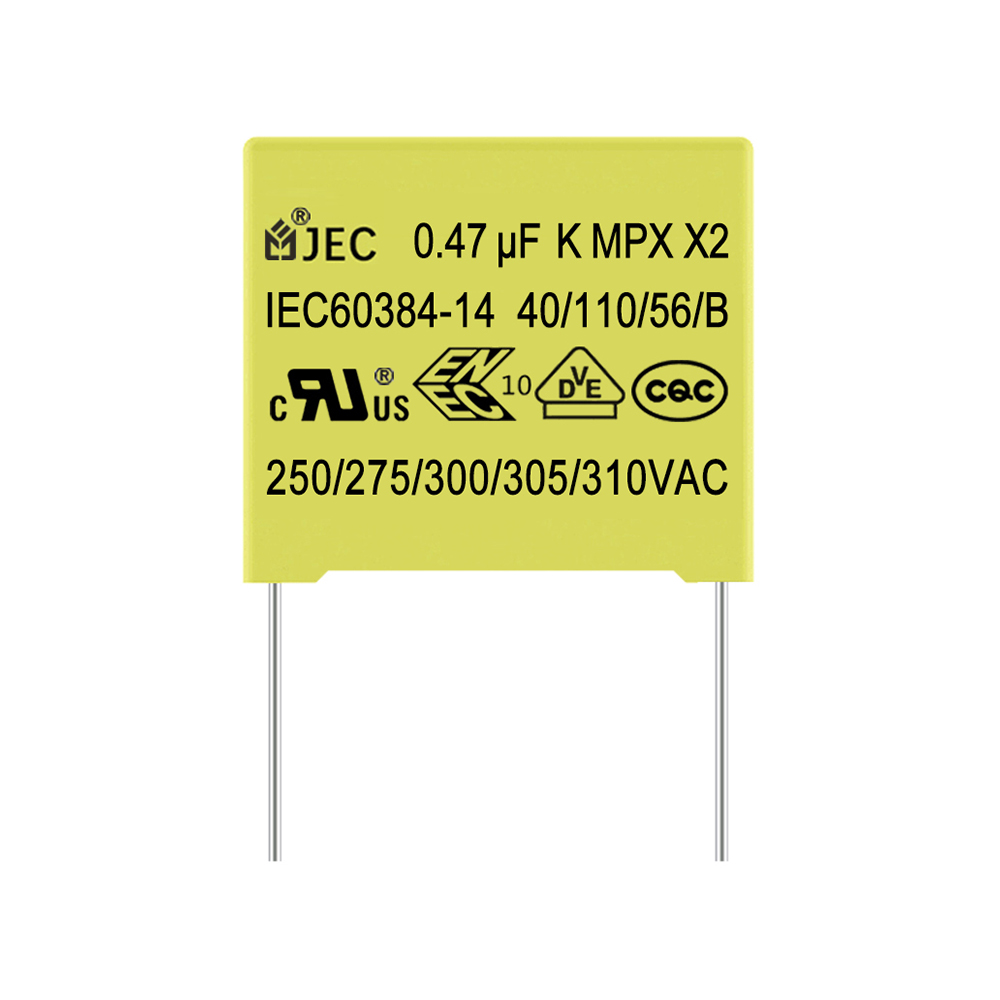

Class X2 Safety Capacitor 0.47 uf 275V

PRODUCT DESCRIPTION

Electrical Characteristics:

Product Features

This product uses polypropylene film as the dielectric, and zinc-aluminum metal layer as the electrode. The exterior is encapsulated with a flame-retardant plastic shell (PBT) and potted with epoxy resin. Our products are compact and suitable for installation in high-density occasions


Standards the product based on:

GB/T2693-2001

GB/6346.14-2015

IEC60384-14:2013

GB/T2828.1-2003

And international standards for safety certification

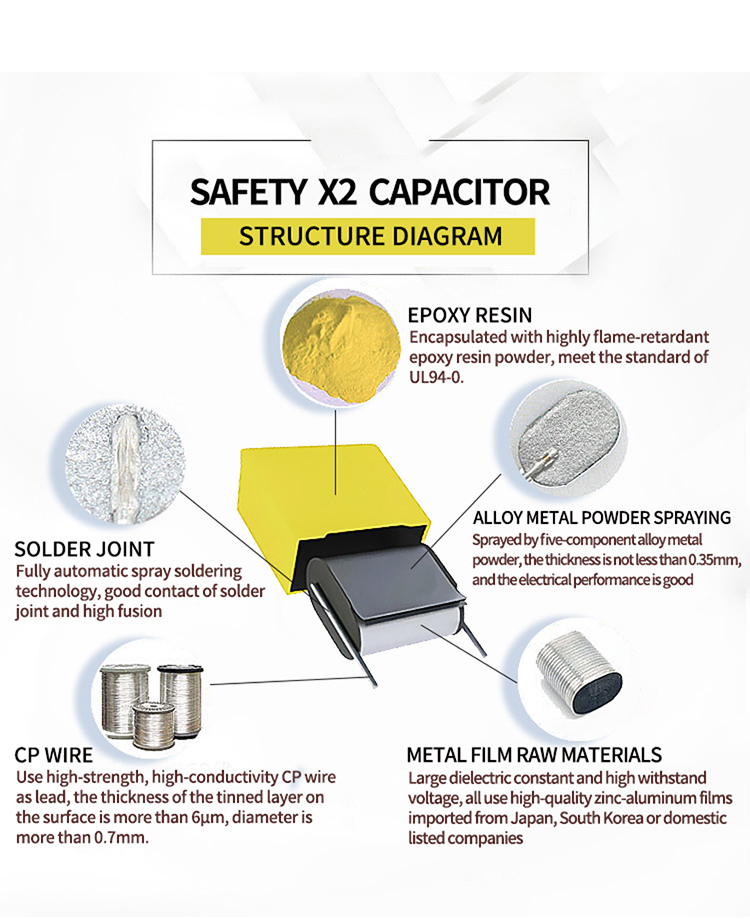

Product Structure Chart:

Class X2 Safety Capacitor 0.47 uf 275V

Application Area :

Class X2 Safety Capacitor 0.47 uf 275V

Certifications :

*FAQ:

What is the function of safety capacitors?

Safety capacitors are an important part of power technology. Safety capacitors are divided into X capacitors and Y capacitors, and their safety levels allow peak pulse voltage and overvoltage in applications.

Suppress the electromagnetic interference of the power supply: When using a capacitor to eliminate noise in the power supply cross-line circuit, not only the normal voltage, but also the generation of abnormal pulse voltage (such as lightning) must be considered, which may cause the capacitor to smoke or catch fire.





Q: What is a resistor, capacitor and inductor respectively?

A: Resistor is a current-limiting component. After the resistor is connected to the circuit, the resistance of the resistor is generally fixed with two pins, which can limit the current through the branch connected to it.


Capacitors are components that store electricity and electrical energy (potential energy). A conductor is surrounded by another conductor, or the electric field lines emitted by one conductor all terminate in another conductor's conduction system, which is called a capacitor.


Inductor is an element that can convert electrical energy into magnetic energy and store it. The structure of the inductor is similar to that of a transformer, but it has only one winding. The inductor has a certain inductance, it only hinders the change of current.
