UL94V0 flame-retardant PBT plastic package
Very low loss
Safety and environmental protection

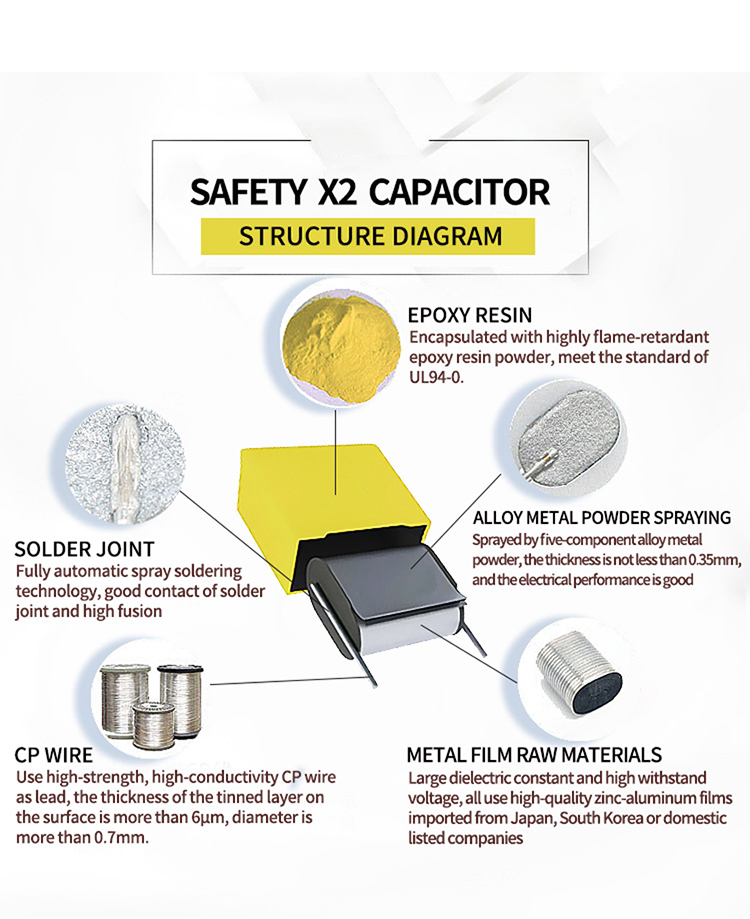

Product Structure Chart:
Epoxy resin powder encapsulation, environmental protection, corrosion resistance and moisture resistance
High Quality Film
Imported film with high pressure resistance
Good stability and low loss
Antioxidant Cp Line
Imported Gold Spray Technology
Laser inkjet printing technology, clear and unfading printing
Using imported automation equipment, the surface of tin-zinc material is uniform and consistent.
Moisture-proof and strong packaging technique to protect the products from being damaged or stained
Product Packaging Drawing:
Application Area :
How to choose a safety capacitor?
The selection method of safety capacitor is as follows:
(1) Withstand Voltage Selection:
X-type stabilized capacitors are divided into three types according to withstand voltage: X1, X2, and X3. The permissible peak pulse voltage over-potential level of the stable capacitor safety level: 2.5kV<X1≤4.0kV, X2≤2.5kV, X3≤1.2kV.
Y-type safety capacitor safety level: Y1≥250V, allowable peak pulse voltage>8KV; 150V≤Y2≤300V, allowable peak pulse voltage>5KV, Y4<150V, allowable peak pulse voltage>2.5KV.
Choose stable capacitors with different withstand voltage values according to the circuit, and cannot be too large or too small. X2 capacitors are mostly selected for X capacitors.
(2) Certification Type
Regardless of the type of electronic device, it must be verified. Safety certification also includes product safety verification, environmental certification, and power energy verification. Different countries have different electrical safety requirements. Some require ccc certification. Many, such as CQC certification in China, VDE certification in France, UL certification in the United Kingdom, ENEC certification in EU countries, and KC certification in Japan. In the case of choosing safety capacitors, different verified electronic devices should be selected according to different places and different countries.
Radial Ceramic Capacitor Class Y1 0.1uf
Capacitance ranges from 10pF to 4700pF. Operating temperature: -40℃ ~ 125℃ Storage temperature: 15℃ ~ 35℃ Capacitors for suppressing power electromagnetic interference have high dielectric constant ceramic dielectric and flame retardant epoxy resin encapsulation.
