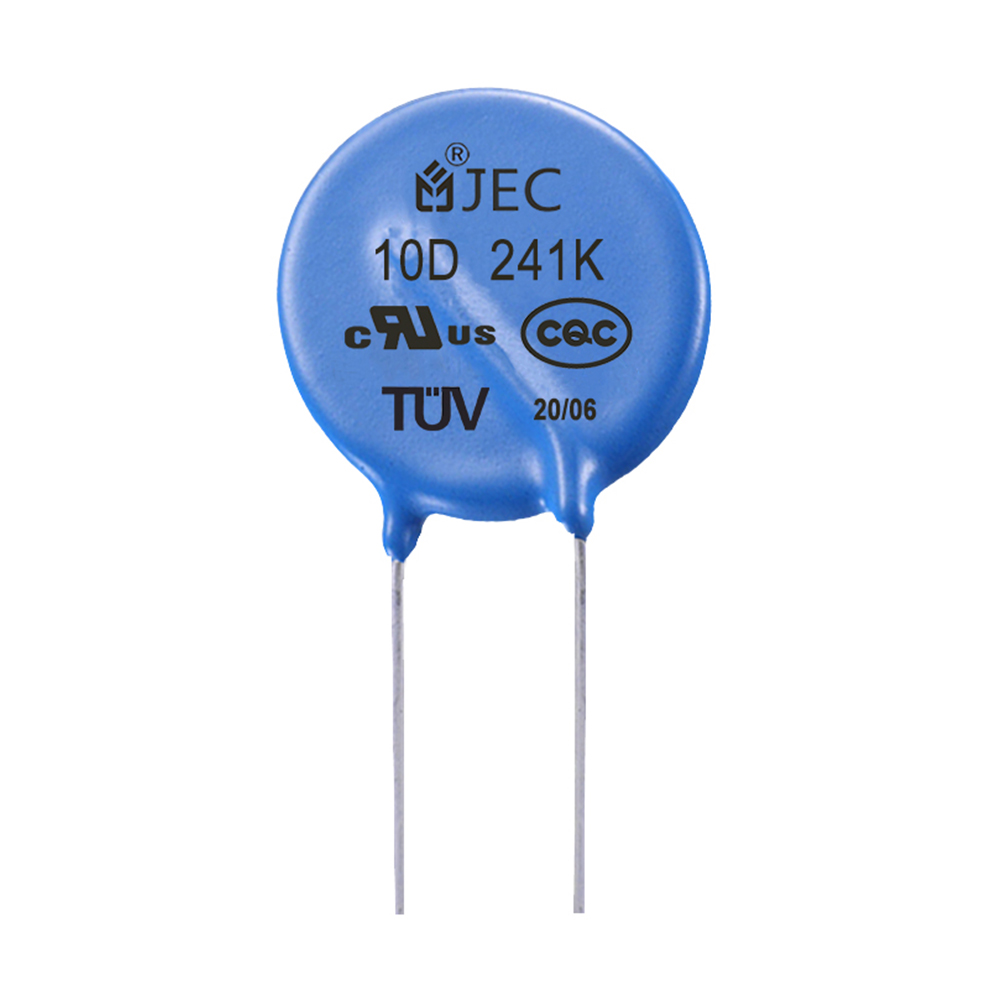

10D 241K Metal Oxide Varistors

PRODUCT DESCRIPTION

Electrical Characteristics:

Wide operating voltages ranging from 5Vrms to 1000Vrms (6Vdc to 1465Vdc).

Fast response time of less than 25nS, instantly clamping the transient over voltage.

High surge current handling capability.

High energy absorption capability.

Low clamping voltages, providing better surge protection

Low capacitance values, providing digital switching circuitry protection.

High insulation resistance, preventing electric arching to the adjacent devices or circuits.


10D 241K Metal Oxide Varistors

Production Process:

Advanced Equipment:

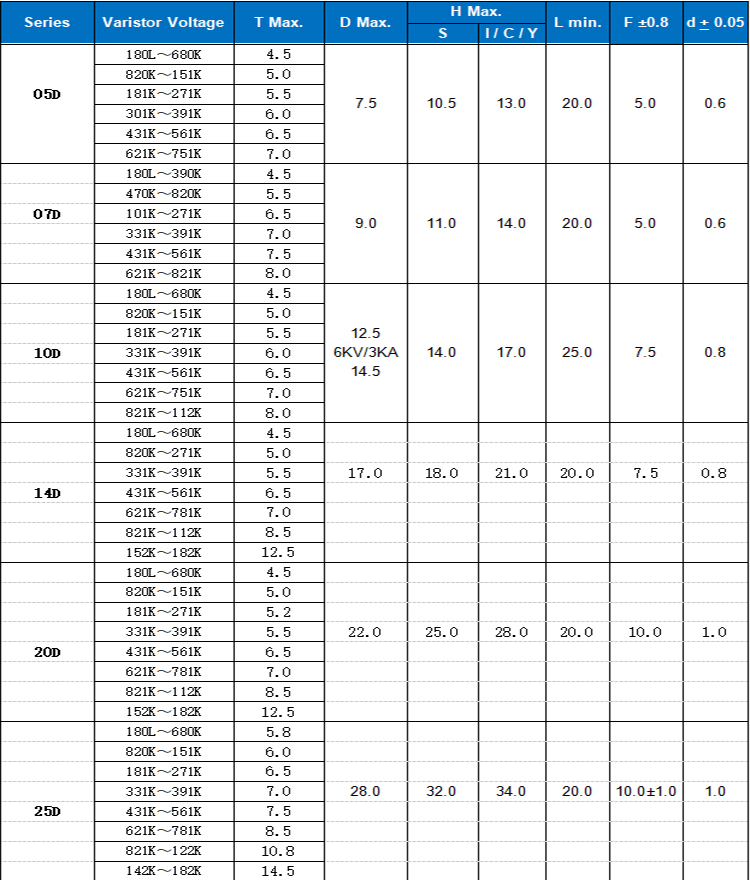

Product Packaging Drawing:

Application Area :

Transistor, Diode, IC, Thyristor or Triac semiconductor protection.

Surge protection in consumer electronics.

Surge protection in industrial electronics.

Surge protection in electronic home appliances, gas and petroleum appliances.

Relay and electromagnetic valve surge absorption.

Customer Feedback :

*FAQ:

What is a varistor?

A varistor is a resistor whose resistance value changes with voltage within a certain current and voltage range, or a resistor whose "resistance value is sensitive to voltage", abbreviated as VDR". The resistor body material of the varistor is a semiconductor, so it is a type of semiconductor resistor. Now the most widely used varistors are "zinc oxide" (ZnO) varistors



How to choose a varistor?

1)The voltage value of the varistor should be greater than the voltage peak value in the actual circuit, that is, the power supply voltage continuously applied to both ends of the varistor should be less than the "maximum continuous working voltage value" in the varistor specification.

2)The clamping voltage of the varistor should be less than the maximum voltage of the protected equipment.

3)The nominal discharge current of the varistor should be greater than the maximum surge current that may appear in the line.

4) Consider the use environment and the specific requirements of the surge voltage.
