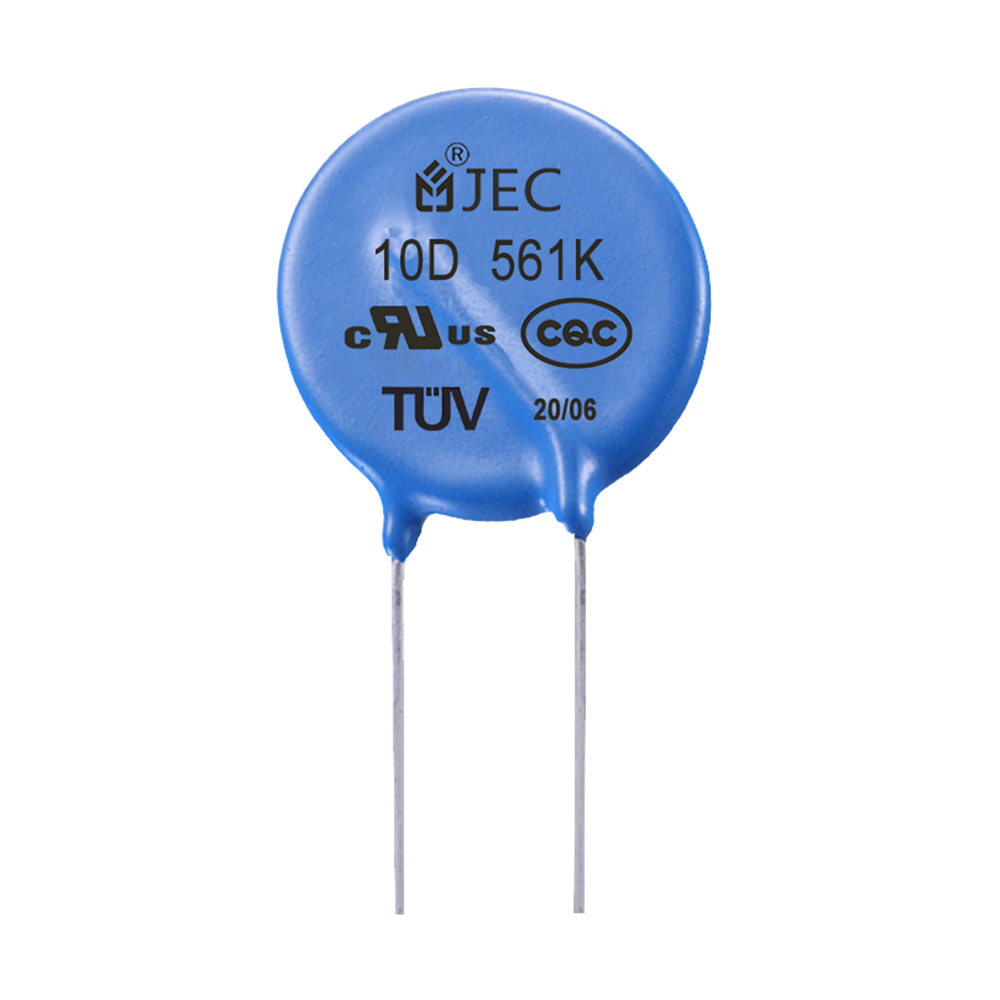

Varistor Resistor 10D 561K MOV Capacitor

PRODUCT DESCRIPTION

Electrical Characteristics:

Small and compact size

Large surge current resistance

Fast response speed, high sensitivity

Low limit voltage, reliable protection effect

No freewheeling

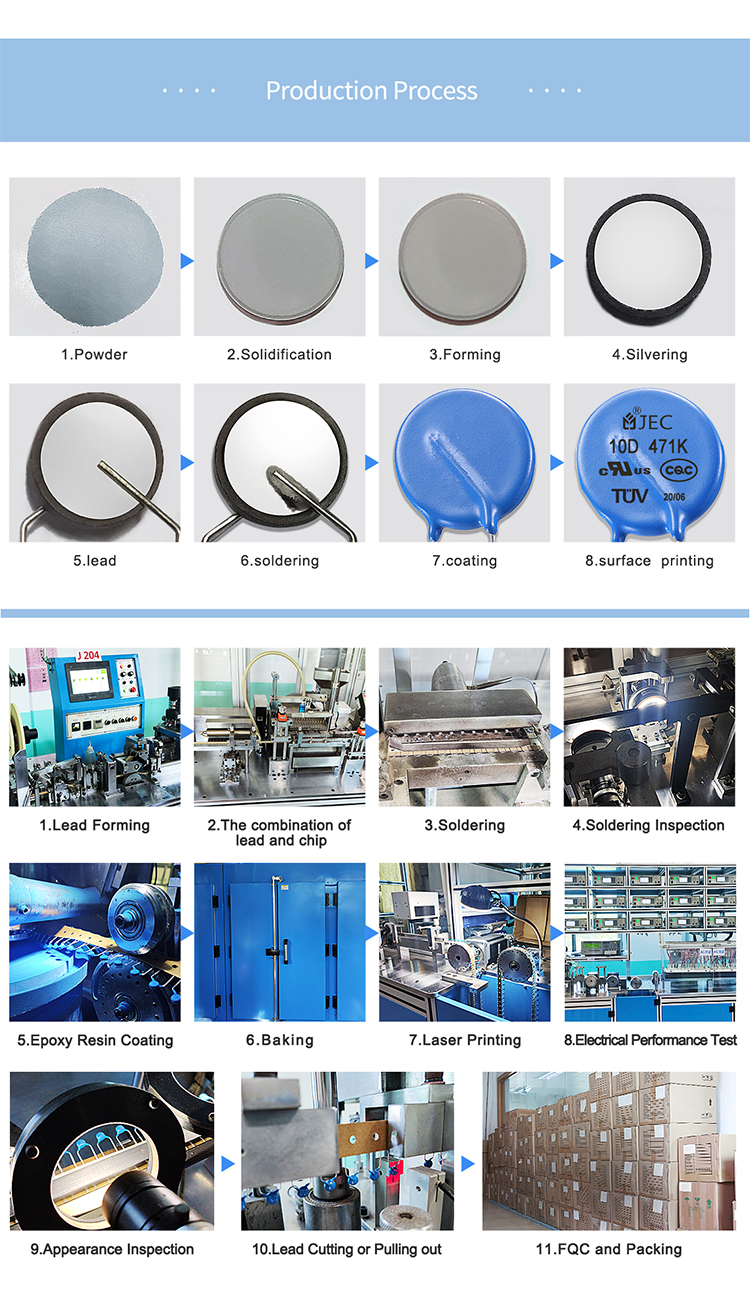

Production Process:

Varistor Resistor 10D 561K MOV Capacitor

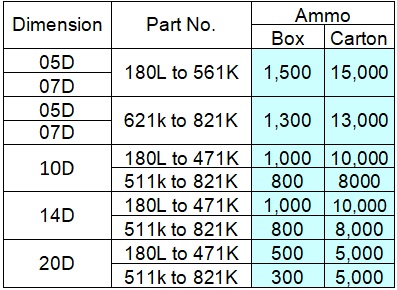

Product Packaging Drawing:

ZOV 10D 471K Circuit Protection

Application Area :

ZOV 10D 471K Circuit Protection

Suppress the inrush current from the main power supply of consumer electronic products and industrial electronic equipment, such as LED lighting, watt-hour meters, switching power supplies, power strips, etc.

Suppress inrush current from wired network equipment such as communications

Suppress the surge that occurs in the line electronic circuit; photographic equipment, etc.. Used for voltage limiting switches, etc.


Certifications :

ZOV 10D 471K Circuit Protection

*FAQ:

Q: What is the role of varistor in the circuit?

A: Operating overvoltage is a kind of overvoltage generated when the electromagnetic energy is rapidly converted and quickly released when the working state of the circuit changes suddenly. Varistor can be used to protect various power equipment, motors, etc. to prevent this overvoltage.


The varistor is often used in parallel with the protection component. If it is placed at the power inlet basically behind the fuse, the fuse can play a protective role when the varistor fails.



Q: What is the difference between a varistor and a thermistor?

A: 1. Different sensitivity

The thermistor is a temperature-sensitive protection element. It can generally be divided into positive temperature coefficient thermistor (PTC) and negative temperature coefficient thermistor (NTC). It has different resistance values at different temperatures. specialty.


A varistor is a voltage-sensitive resistive device with nonlinear volt-ampere characteristics. Within the range that the varistor voltage can withstand, it can effectively suppress the large current when overvoltage occurs, so as to achieve the purpose of protecting the circuit.


2.Different material

Thermistors generally use semiconductor materials, while varistors most commonly use metal oxides, such as zinc oxide materials.


3. Different connection method in the circuit

The thermistor is generally connected in series in the circuit, and its resistance is equivalent to zero, similar to the role of a fuse. The varistor is connected in parallel in the circuit, and the resistance value will be different with the change of voltage.


4. Different color

Thermistors are mainly black and varistors are mostly blue. Besides, the printing is different according to different models.
