104 50V

Product features:

Multiple temperature levels, low loss and high capacity stability

PRODUCT DESCRIPTION

Electrical characteristics:

Technical requirements reference StandardGB/T 2693-2001 ; GB/T 5966-1996
Rated Voltage(UR)500 / 1K / 2K / 3K / 4K / 5K / 6K / 7K / 8K / 9K / 10K / 15K / 20K / 25K / 30K / 40K /50K VDC
Capacitance Range1pF to 100000pF
Withstand Voltage<500V,2.5UR ; ≥500V≤3KV,1.5UR+500V ; >3KV,1.2UR
Capacitance ToleranceNPO±0.5pF(D)±5%(J) ; SL±5%(J)±10%(K),Y5P,Y5U±10%(K ) ; Y5U,Y5V±20%(M)
Dissipation Factor (tgδ)C<30pF,Q≥400+20C ; C≥30pF,Q≥1000 ,Y5P,Y5U,Y5V:tgδ≤2.0% ; Y5P:tgδ≤0.5% ; Y5R:tgδ≤0.3%
Insulation Resistance(IR)IR≥10000MΩ,1min,100VDC,IR≥4000MΩ,1min,100VDC
Operating Temperature Range-25℃ to +85℃
Temperature CharacteristicNPO,SL,Y5P,Y5U,Y5V
Flame Retardant Epoxy ResinUL94-V0

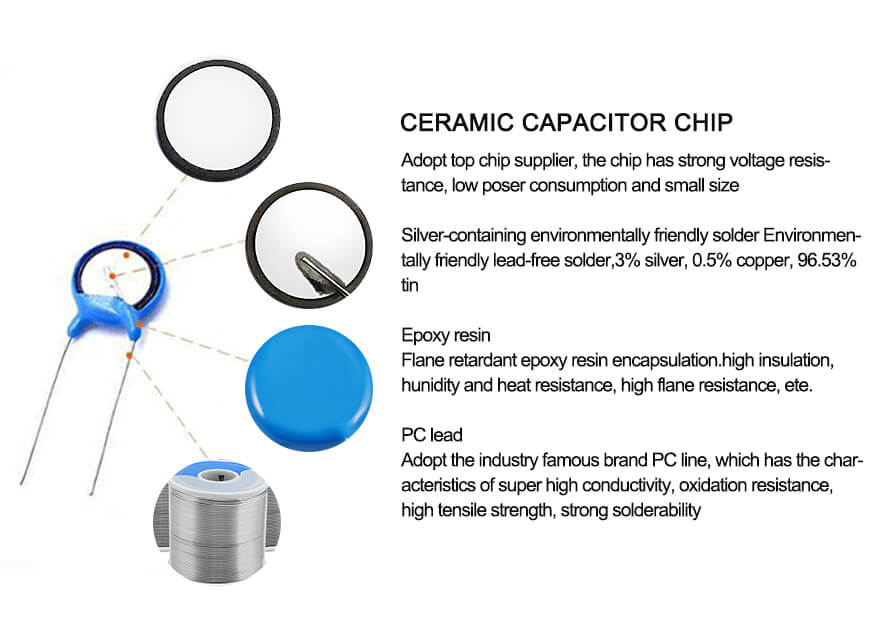

Product structure chart:

104 50V

Production Process:

101 10KV

101 10KV

Advanced Equipment:

101 10KV

Product packaging drawing:

101 10KV

Application Area :

1. Apply to high-voltage bypass and coupling circuits, or the circuit responsible for line scanning in TV.

2. Apply to tuning circuits or those need to compensate for temperature effects.

3. Apply to the circuits requiring large capacity, such as energy storage, memory circuits, etc.


*Matters Needing Attention:

1. Do not store the capacitor in corrosive gas, especially in the presence of chlorine, sulfur, acid, alkali, salt, moisture, etc.


2. The storage temperature and the relative humidity should not be too low or too high.
