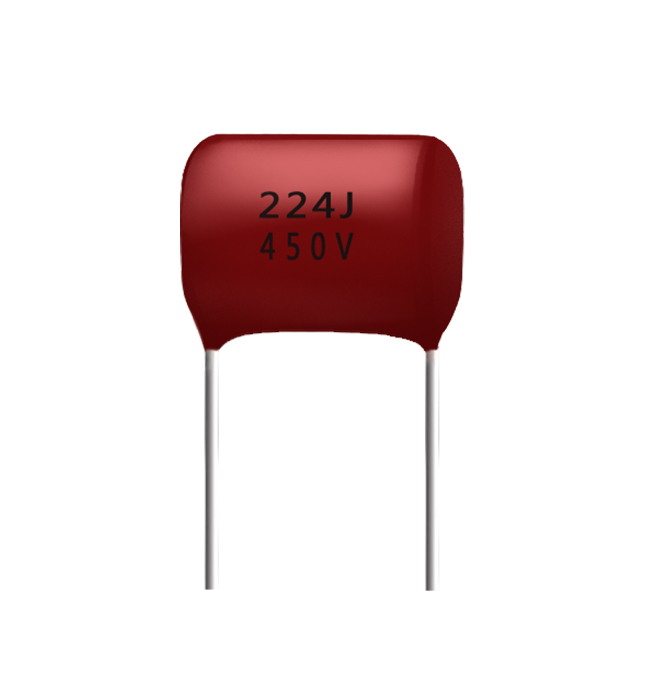

CBB21 224J 450V

Product features:

1. Metallized polypropylene film, non-inductive structure, large capacity, less change in capacity, and small amplitude of internal temperature rise.

2. Low loss at high frequency, strong self-healing ability, withstand high pulses, large current, and high frequency resistance of 100KHZ.


Electrical characteristics:

Technical requirements reference StandardGB/T 14579 (IEC 60384-17)
Climatic Category40/105/21
Operating Temperature-40℃~105℃(+85℃~+105℃:decreasing factor1.25% per℃ for UR)
Rated Voltage100V、250V、400V、630V、1000V
Capacitance Range0.001μF~3.3μF
Capacitance Tolerance±5%(J),±10%(K)
Withstand Voltage1.5UR,5sec
Insulation Resistance(IR)Cn≤0.33μF,IR≥15000MΩ ;Cn>0.33μF,RCn≥5000s at 100V,20℃,1minFor 60sec / 25℃For 60sec / 25℃
Dissipation Factor (tgδ)0.1% Max, at 1KHz and 20℃

Product structure chart:

CBB21 224J 450V

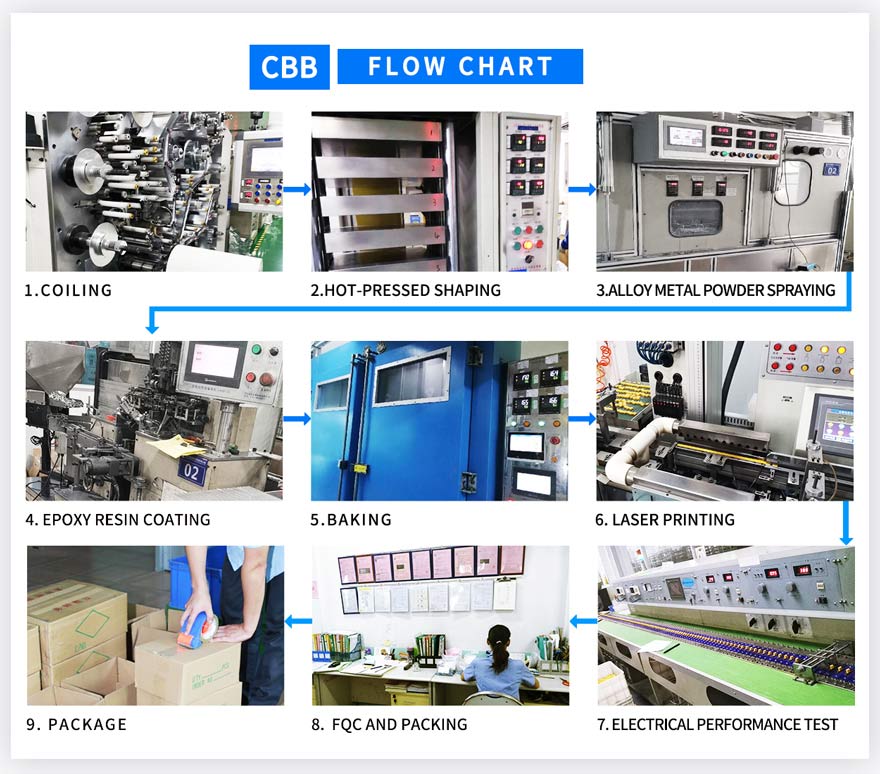

Production Process:

CBB21 224J 450V

Advanced Equipment:

101 10KV

Product packaging drawing:

101 10KV

Application Area :

1. Widely used in high current, high frequency, DC, AC and pulse circuits.

2. Suitable for S correction circuit in color TV which requires small size and excellent performance.

CBB21 224J 450V

*Matters Needing Attention:

1. Do not store the capacitor in corrosive gas, especially in the presence of chlorine, sulfur, acid, alkali, salt, moisture, etc.

2. The storage temperature and the relative humidity should not be too low or too high.
