The Roles of Film Capacitors

Mar. 06, 2024

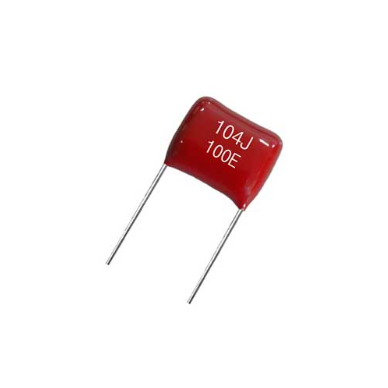

Film capacitors play pivotal roles in various electronic circuits due to their unique construction and properties. Essentially, these capacitors consist of metal foil electrodes enclosed within plastic films such as polyethylene, polypropylene, polystyrene, or polycarbonate, forming a cylindrical structure. Depending on the type of plastic film utilized, film capacitors are categorized into polyethylene (Mylar), polypropylene (PP), polystyrene (PS), and polycarbonate variants.



The Roles of Film Capacitors


One significant function of film capacitors is their ability to mitigate interference within power supply and battery circuits. Particularly in circuits, X2 and Y1 safety capacitors are commonly employed for this purpose. Another vital function is their involvement in resonant circuits. In alternating current (AC) setups featuring a capacitor (C), resistor (R), and inductor (L), discrepancies in voltage and phase of the current across the circuit are typical. However, by adjusting either the power supply frequency or the parameters of circuit components (L or C), it's possible to synchronize voltage phases, rendering the entire circuit purely resistive. This state, known as resonance, is crucial in optimizing circuit performance. In practical applications, such as the LED lighting industry, resonance circuits utilizing resistance-capacitance (RC) configurations are extensively utilized. Here, film capacitors serve as key components, directly influencing the longevity and performance of LED lamps.



In summary, film capacitors excel in suppressing interference and facilitating resonance in electronic circuits, contributing significantly to the efficiency and reliability of various electronic devices and systems.


This article was provided by JYH HSU (JEC) Electronics Ltd (or Dongguan Zhixu Electronic Co., Ltd.), an electronic components manufacturer who produces all kinds of capacitors and resistors. JEC factories hold ISO 9000 and ISO 14000 certifications.
