Sep. 19, 2025

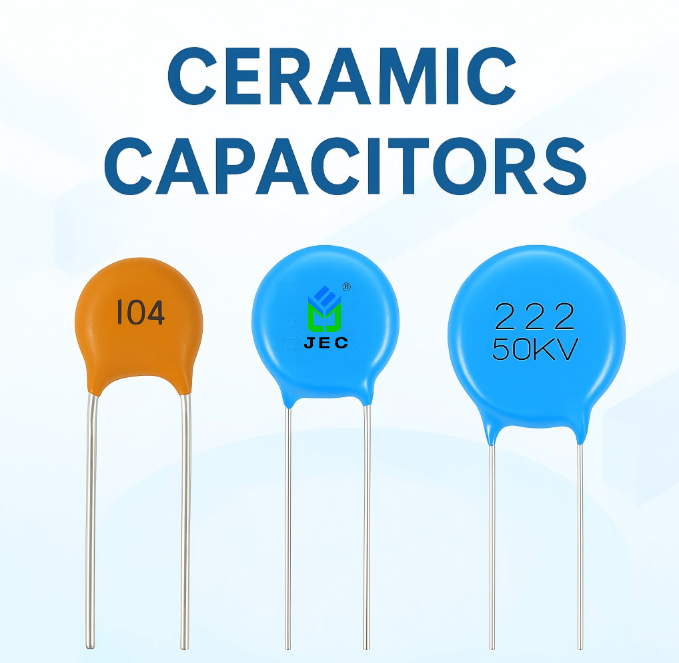

In modern electronic devices, capacitors are essential components that perform filtering, coupling, and energy storage functions. Among the many types of capacitors, ceramic capacitors are widely used due to their small size, low cost, wide capacitance range, and excellent frequency characteristics.
One notable advantage of ceramic capacitors, especially multilayer ceramic capacitors (MLCCs), is that they heat up very little during normal operation. Even when powered, their temperature rise is minimal and often barely noticeable. Why is this the case?
1. Low Energy Loss
Heat in a capacitor mainly comes from two sources:
· Equivalent Series Resistance (ESR) loss: heat generated when current passes through the internal resistance of the capacitor.
· Dielectric loss: internal energy loss caused by molecular friction when the dielectric material polarizes.
Ceramic capacitors use highly conductive metal electrodes and low-loss ceramic materials. This keeps both ESR and dielectric losses very low, so the amount of heat generated is minimal, resulting in a very small temperature rise.
2. Excellent Dielectric Properties of Ceramic Materials
Ceramic capacitors remain cool mainly because the ceramic dielectric has excellent electrical properties. When energized, only a tiny fraction of electrical energy is converted into heat.
The ceramic dielectric reacts quickly to electric fields and produces minimal friction, meaning its dielectric loss is very low. Combined with the low-resistance structure of the ceramic material and metal electrodes, very little heat is generated during current flow.
3. Non-Polarized Structure
Ceramic capacitors are non-polarized, meaning current can flow in either direction without issue. Unlike polarized capacitors, which can generate excess heat and leakage if connected incorrectly, ceramic capacitors avoid such additional energy loss, further minimizing temperature rise.
In summary, ceramic capacitors heat up very little because of their low ESR, low dielectric loss, excellent dielectric properties, and non-polarized structure. This makes them ideal for modern electronics where efficiency and reliability are critical.
This article is provided by JYH HSU (JEC) Electronics. JEC is a research, development, production, and sales-oriented company specializing in manufacturing and selling various electronic components such as capacitors and resistors.
