In switch power supply and electronic circuits, there is an electronic component that can protect the circuit, which is called safety capacitor.
The full name of the safety capacitor is the capacitor for suppressing electromagnetic interference of the power supply. If the external power supply is disconnected during use, the safety capacitor will quickly release the internal charge. At this time, touching with hands will not cause electric shock, which greatly protects personal safety. It complies with safety testing and safety certification, and its casing is printed with multi-national safety certification marks, so it is used in switching power supplies and circuits to protect circuits and human bodies, and protect the human body from current damage.
Safety capacitors are widely used in small household appliances, power supply products, electromechanical motors, LED lighting, portable chargers, etc.
Safety capacitors are common, but how can we know the information about safety capacitors when choosing? In fact, we can get the information we want to know through the printing on the safety capacitor housing. For example, the capacitance, capacitance tolerance, safety certification, etc. of safety capacitors can be obtained through the printing on the safety capacitor case.

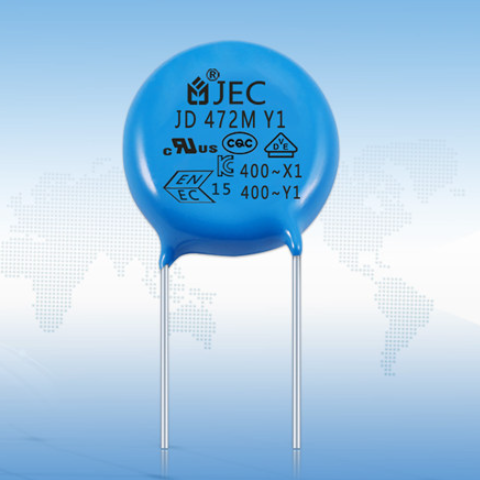

The following picture is a safety Y capacitor branded as JEC (JYH HSU):
1. The Capacitance of Safety Capacitors
Safety capacitance range: 10pf~10000pF. Here, JEC's safety Y capacitor has a capacitance capacity of 4700pF.
2. The Safety Capacitor Capacitance Tolerance
In the process of capacitors, it is not guaranteed that the capacitance of each capacitor is consistent with the nominal value, and there is always a certain deviation, which is the capacitor capacitance tolerance. The capacitance tolerance of the capacitor is expressed as a percentage of J grade: ±5%, K grade: ±10%, M grade: ±20%, Z: -20% ~ +80%. Among them, the tolerance less than 5% can be called precision capacitors, while the general capacitors are mostly J, K, M grade.
The safety Y capacitor capacity tolerance of Zhixu JEC is M grade: ±20%.
3. Safety Capacitor Safety Certification
In order to protect the personal safety of consumers and protect their related interests, China has formulated some relevant regulations to standardize and reduce the appearance of inferior counterfeit safety capacitors that endanger personal safety. And it is stipulated that safety capacitors that have not been certified by safety regulations and electronic products that require safety certification cannot appear and cannot be sold on the market. Safety certification includes CQC in China, UL in the United States, ENEC in the European Union, VDE in Germany, KC in South Korea, etc.
JEC's safety Y capacitor has CQC, ENEC, VDE, UL, KC and other multinational safety certifications, saying that JEC's safety Y capacitor has passed the safety certification of many countries and can be sold, which also proves from the side that Zhixu electronic safety capacitors have good quality and quality assurance.
